Heated Glass Control Module: Testing and Inspection

INSPECTION

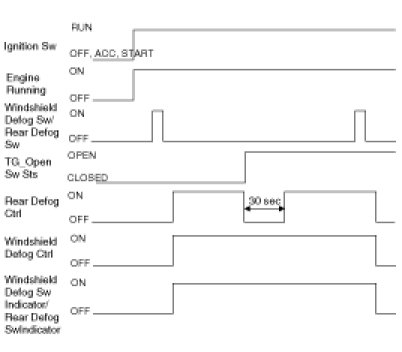

While operating the components, check whether the operations are normal as shown in the timing chart.
1. Once Generator "L" is ON, if the defogger is switched ON, the defogger will stay ON for 20 minutes duration.
2. If defogger switch is pressed again (see Step 1), or if ignition is switched OFF, the defogger will shut OFF.
3. If Generator "L" is OFF, the defogger will shut OFF.
