Rear Door Window Motor: Service and Repair

REPLACEMENT

POWER WINDOW MOTOR REPLACEMENT
1. Remove the rear door trim.

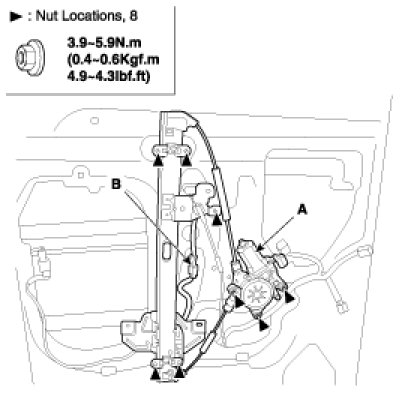

2. After disconnecting the connector (B), remove the power window motor (A).




3. Installation is the reverse of removal.

NOTE:
- Roll the glass up and down to see if it move will freely without binding.
