Power Window Switch: Service and Repair





REPLACEMENT

DRIVER/ASSIST DOOR MODULE (DDM/ADM)
1. Remove (-) negative battery terminal.
2. Remove the front door trim panel.
3. Disconnect the door module mounting screws (5EA) after disconnecting the module connectors (3EA) from the motor.




4. Remove the door module (DDM/ADM) (A) from the front door trim panel.




5. Installation is the reverse of removal.

SLIDING POWER WINDOW SWITCH
1. Remove (-) negative battery terminal.

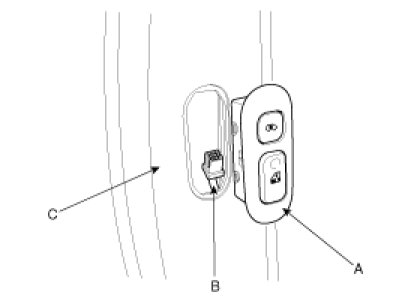

2. Disconnect the connector (B) after removing the sliding power window switch (A) from the B pillar trim (C).




3. Installation is the reverse of removal.

QUARTER GLASS SWITCH
1. Remove (-) negative battery terminal.

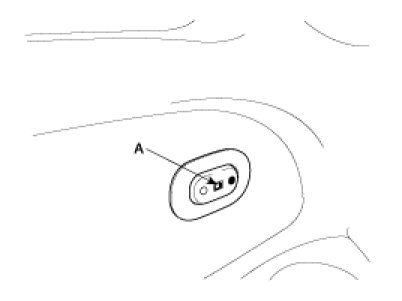

2. Disconnect the connector (B) after removing the quarter glass switch (A) from the rear cargo area luggage trim.




3. Installation is the reverse of removal.
