Repair Procedures

REMOVAL

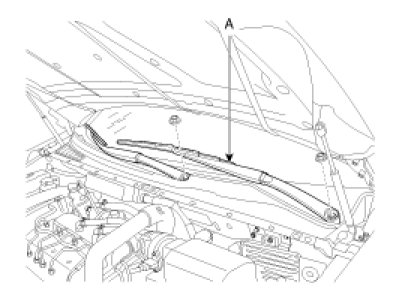

1. Remove the windshield wiper arm and blade after removing the mounting nut (A).

TORQUE: 28 - 32 Nm (2.8 - 3.2 kgf.m, 20 - 23.1 lbf.ft)

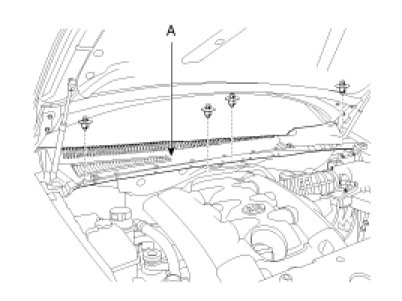

2. Remove the weather strip and the cowl top cover (A) after removing 4 fasteners.

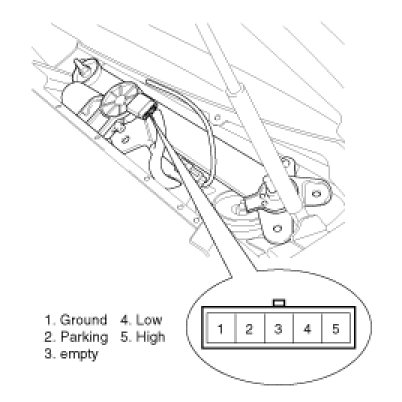

3. Remove the windshield wiper motor and linkage assembly after removing 4 bolts. Disconnect the wiper motor connector (A) and windshield deicer connector (B) from the wiper motor & linkage assembly.

Torque: 7-11Nm (0.7-1.1, kgf.m, 5.0-7.9 lbf.ft)




4. Installation is the reverse of removal.

INSTALLATION

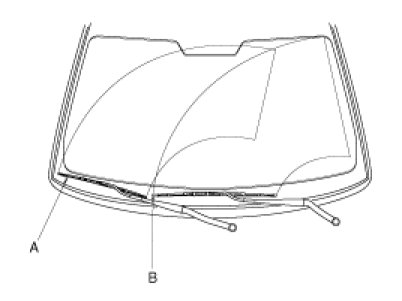

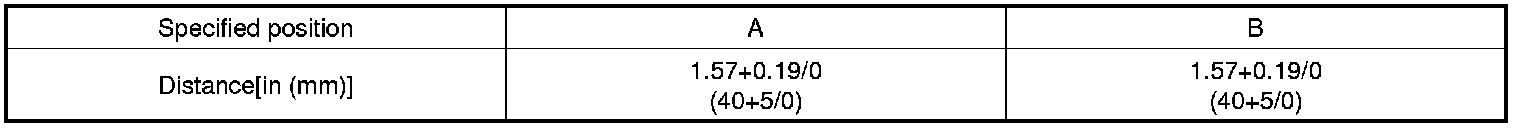

1. Install the wiper arm and blade to the specified position.









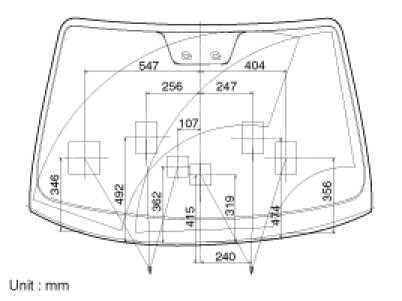

2. Set the washer nozzle on the specified spray position.






INSPECTION

SPEED OPERATION CHECK
1. Remove the connector from the wiper motor.
2. Attach the positive (+) lead from the battery to terminal 4 and the negative (-) lead to terminal 1.
3. Check that the motor operates at low speed.
4. Connect the positive (+) lead from the battery to terminal 5 and the negative (-) lead to terminal 1.
5. Check that the motor operates at high speed.
