Repair Procedures

Replacement

1. Discharge refrigerant from refrigeration system.
2. Replace faulty tube or hose.

CAUTION:
- Cap the open fittings immediately to keep moisture or dirt out of the system.

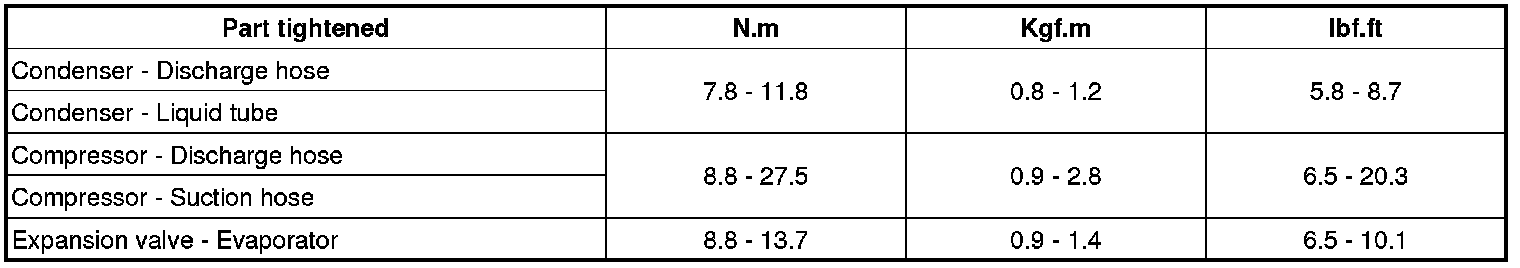

3. Tighten joint of bolt or nut to specified torque

CAUTION:
- Connections should not be torque tighter than the specified torque.





4. Evacuate air in refrigeration system and charge system with refrigerant.

Specified amount:550 ± 25g (19.4 ± 0.88 oz.)

5. Inspect for leakage of refrigerant.
Using a gas leak detector, check for leakage of refrigerant.
6. Inspect A/C operation.
