Mirrors: Service and Repair

Interior Mirror

Remove

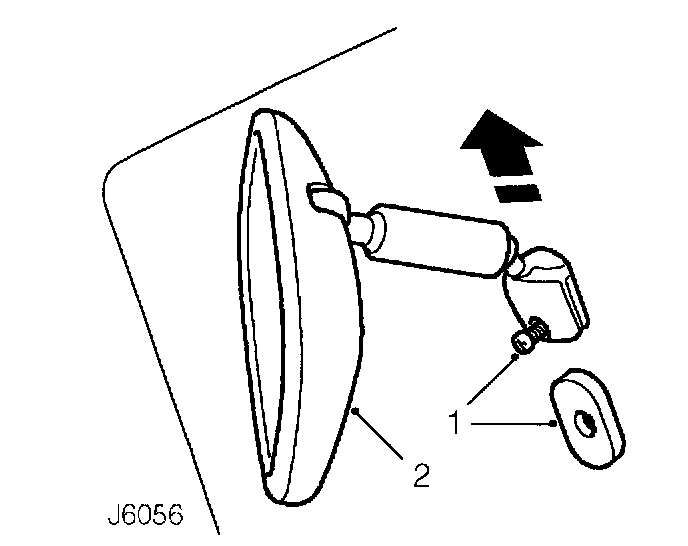

1. Remove retaining screw securing mirror adjustment arm to mounting slug.
2. Slide adjustment arm up from mounting slug and remove mirror.


Refit
3. Slide mirror adjustment arm over mounting slug.
4. Secure mirror with retaining screw.
