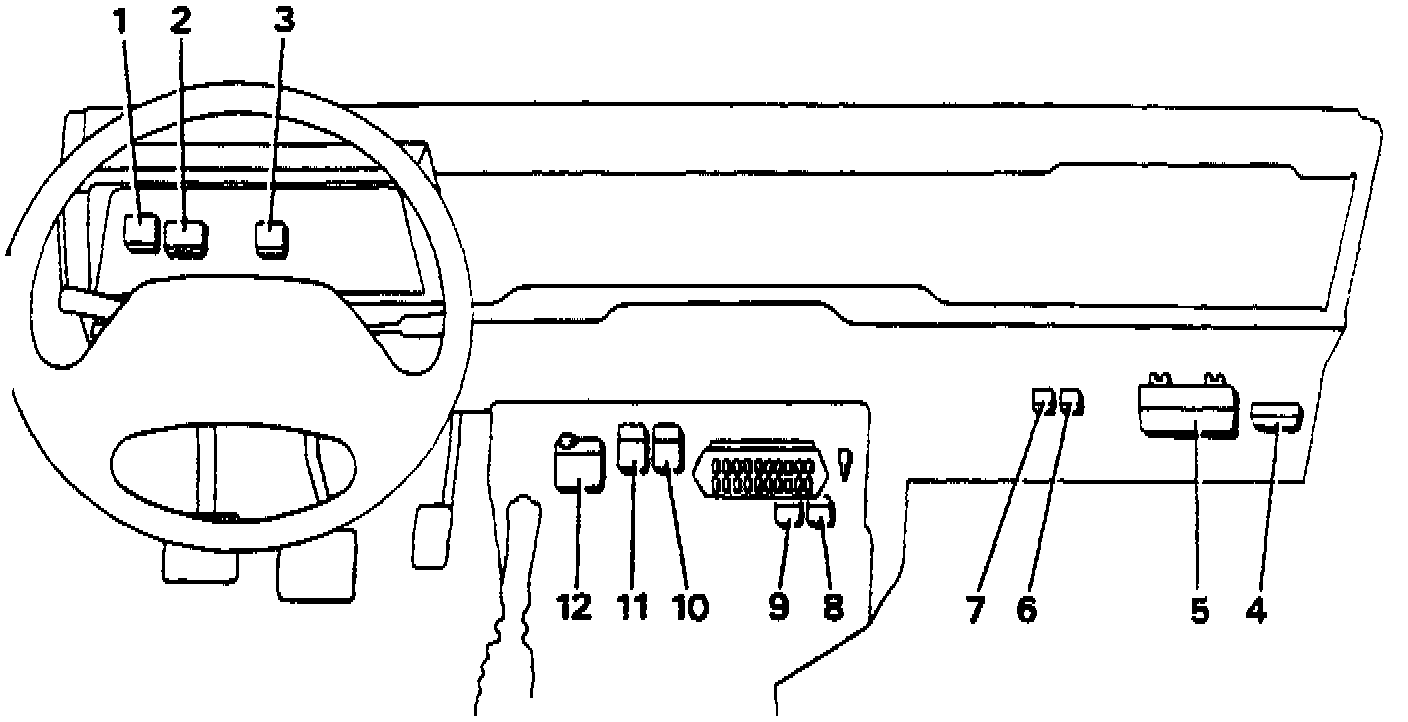

LOCATION OF RELAYS, TIMERS AND CONTROL UNITS

Behind Instrument Panel
1. Warning buzzer unit AW6
2. Service reminder unit EM1
3. Engine/brake warn light check unit WL 1

RH Toe Box Area
4. Diagnostic relay module MF16
5. MFI ECM unit ECM
6. Main MFI relay module EF6
7. Fuel pump relay module EF6

Adjacent Dash Fuse Box
8. Lighting relay module Ls2
9. Starter relay module ST6
10. Wiper delay unit FW3
11. Flasher/hazard unit DF5
12. Inertia switch EF9
