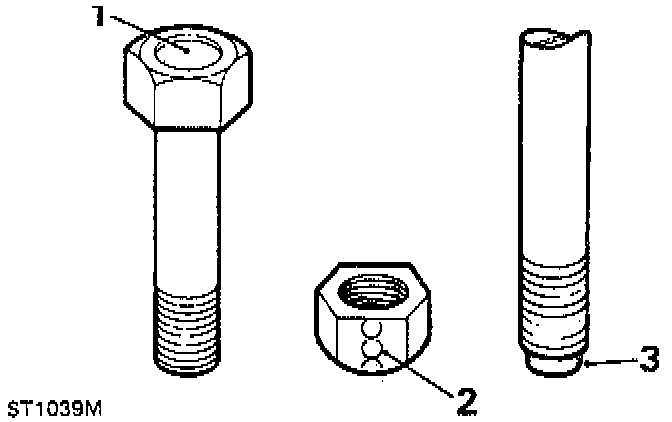

Unified Thread Identification
1.
Bolts:
A circular recess is stamped in the upper surface of the bolt head.
2.
Nuts:
A continuous line of circles is indented on one of the flats of the hexagon, parallel to the axis of the nut.
3.
Studs, Brake Rods, etc.:
The component is reduced to the core diameter for a short length at its extremity.
