Ignition Coil: Service and Repair

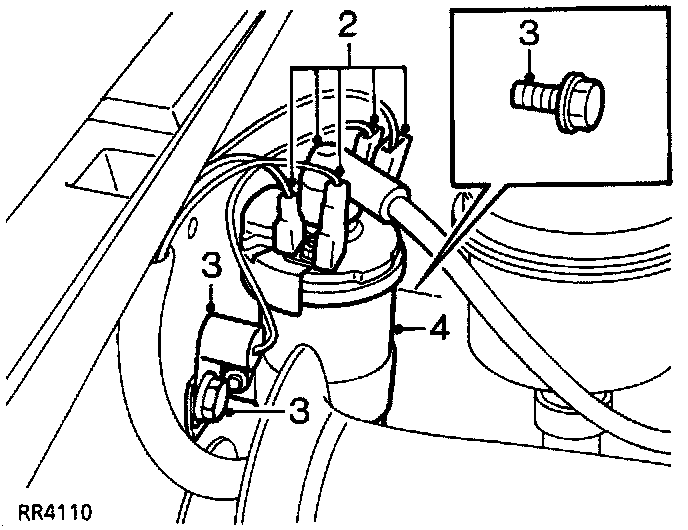

*** FOR ADDITIONAL INFORMATION NOT INCLUDED HERE, REFER TO TSB # TEC190796, DATED DECEMBER 6, 1996 *** REMOVE 1.
Disconnect battery negative lead.
2.
Noting their fitted positions, disconnect electrical leads from
ignition coil.
3.
Remove two bolts securing
ignition coil clamp, recover suppressor.
4.
Remove coil.
REFIT 1.
Reverse removal procedure.
