Fuel Temperature Sensor: Service and Repair

NOTE: Fuel leakage will not occur when sensor is removed from fuel rail, therefore it is not necessary to depressurize the fuel system.

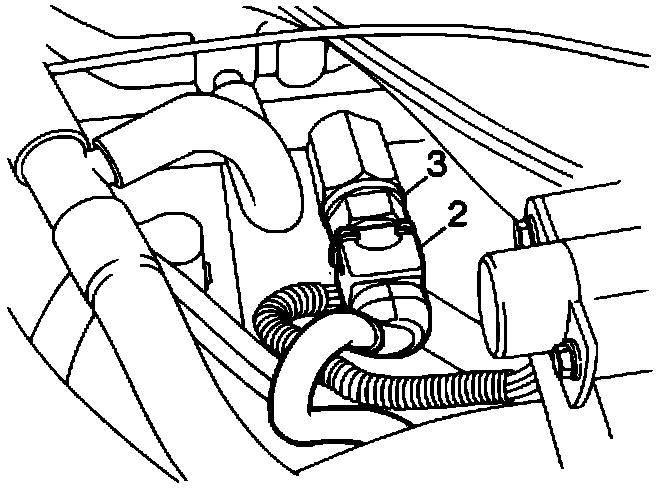

Fuel Temperature Sensor:

REMOVE
1. Disconnect the battery negative lead.
2. Disconnect multi-plug from sensor.
3. Release sensor from fuel feed rail.

REFIT
1. Reverse removal procedure. Be sure sensor is tightened securely in fuel rail.
