Output Shaft - Dismantle
Output Shaft - Dismantle

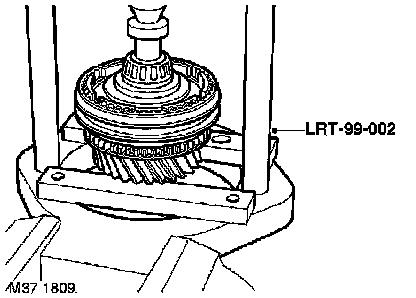

1. USing LRT-99-002 and support bars under 1st gear, press output shaft and support bearing from output shaft.
2. Remove 1st gear, bush, needle bearing synchromesh baulk rings.
3. Remove 1st/2nd gear synchromesh selector hub, 2nd gear and needle bearing.
4. Invert output shaft and using LRT-99-002 and support bars under 3rd gear, press off pilot bearing.
5. Remove spacer, 3rd/4th gear synchromesh selector hub, synchromesh baulk rings, 3rd gear and needle bearing.
