Idle Air Control Valve (M112)
Idle Air Control Valve (M112)

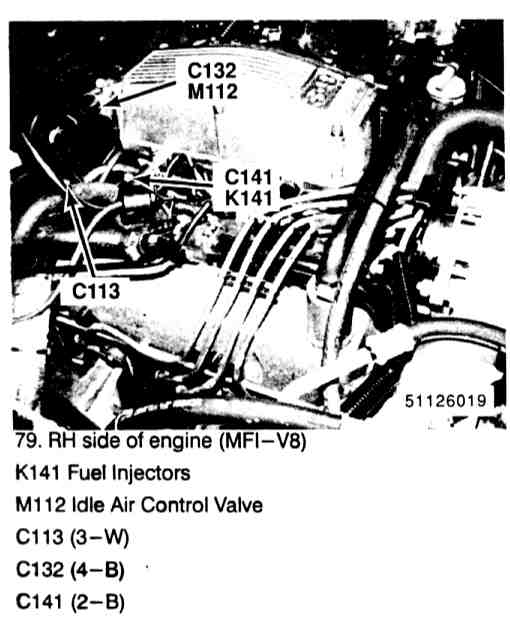

For MFI
Top Rear Of Engine

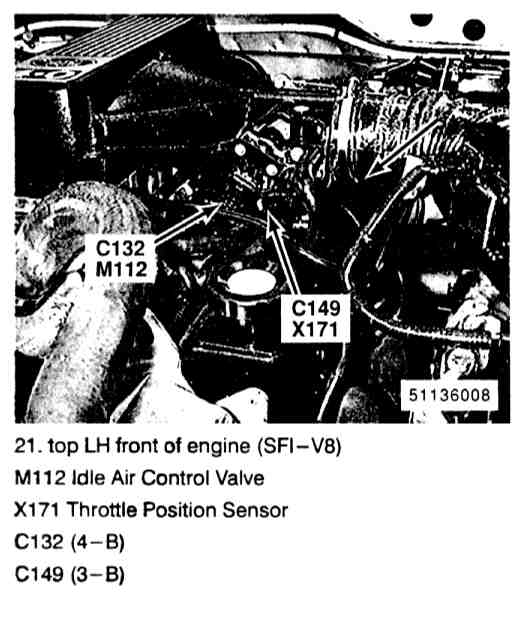

For SFI
Top LH Side Of Engine
