Home >> Land Rover >> 1996 >> Discovery I (LJ) V8-4.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cruise Control >> System Diagram >> General

General

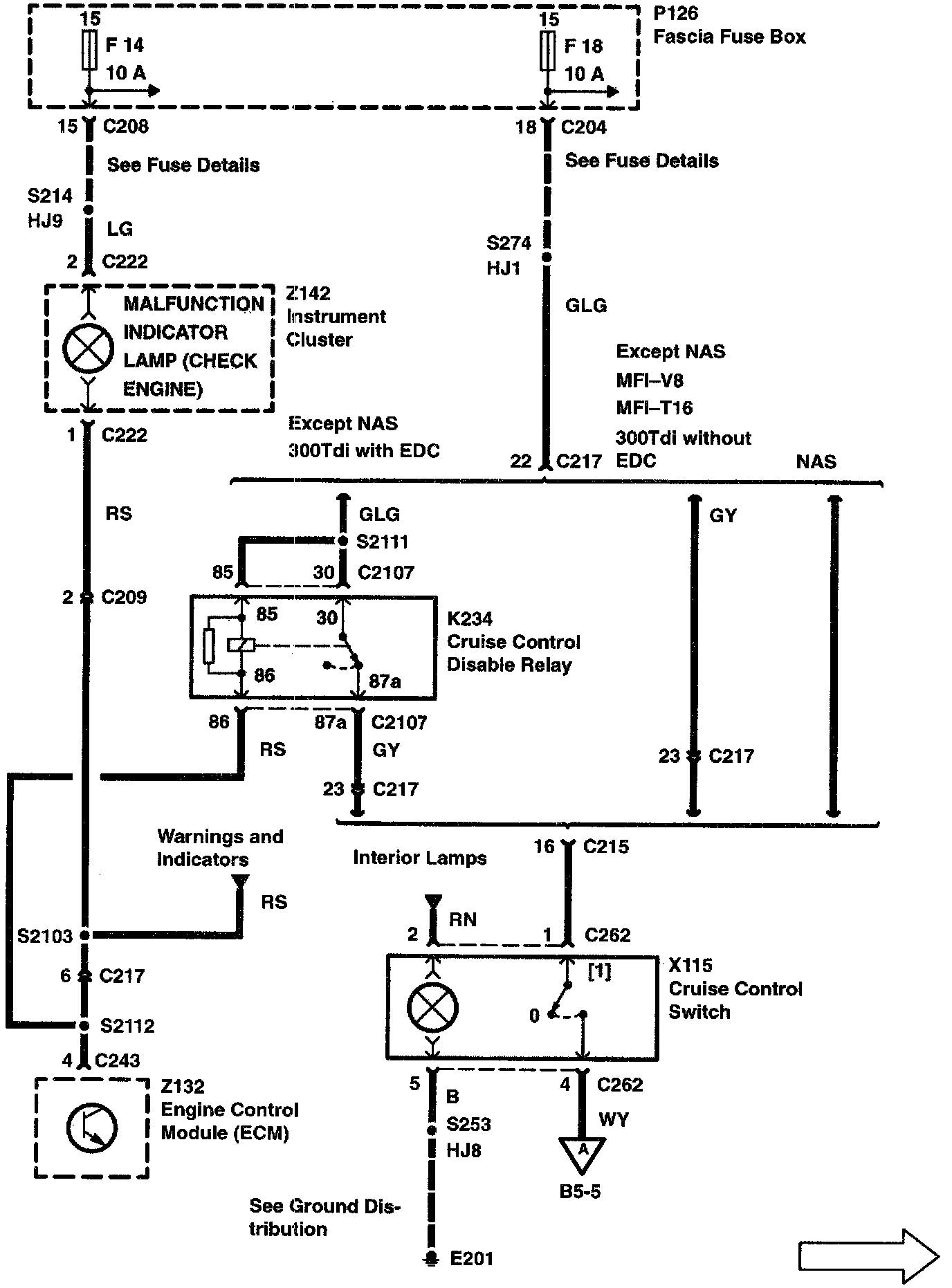

B5-4:

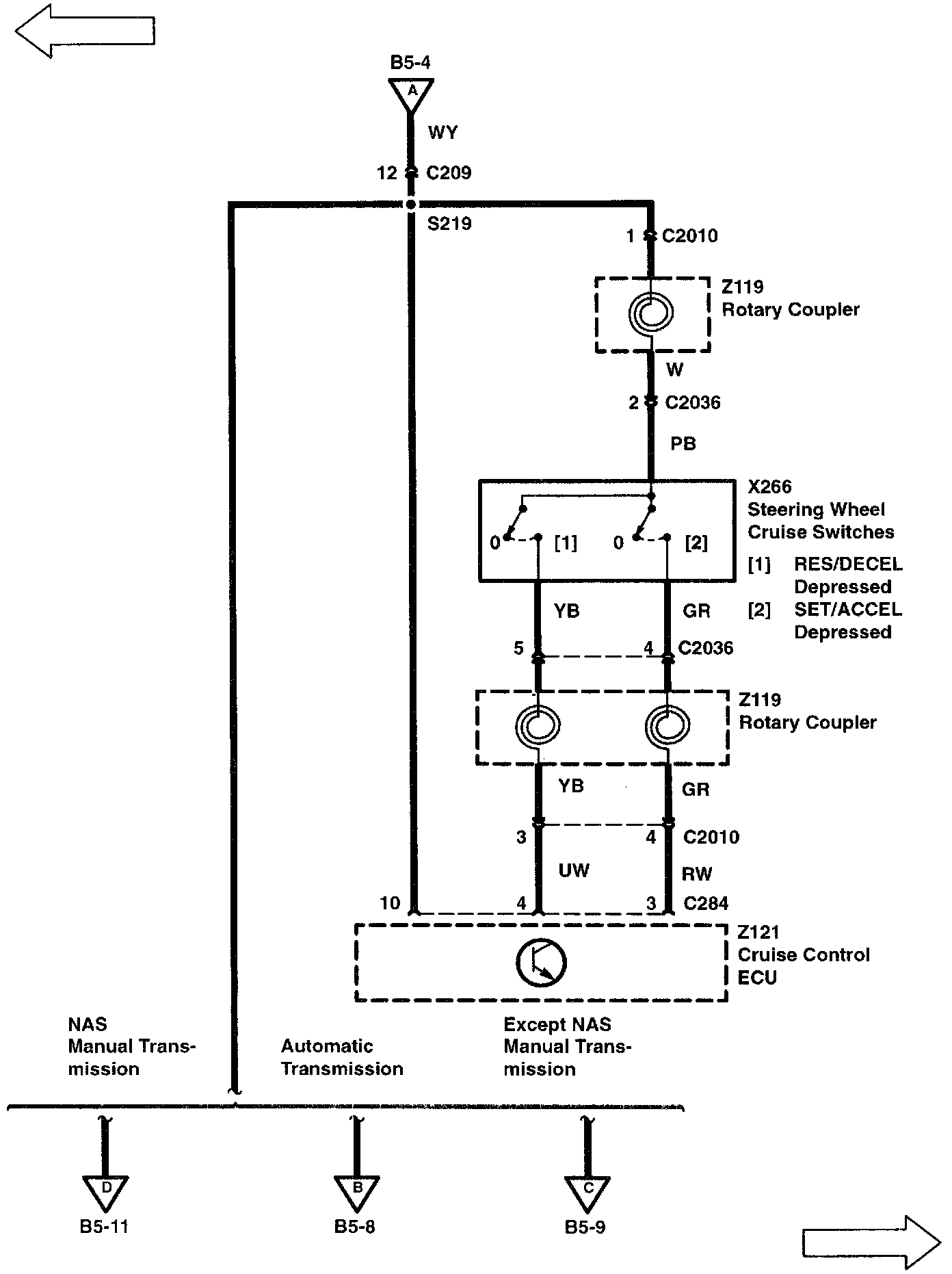

B5-5:

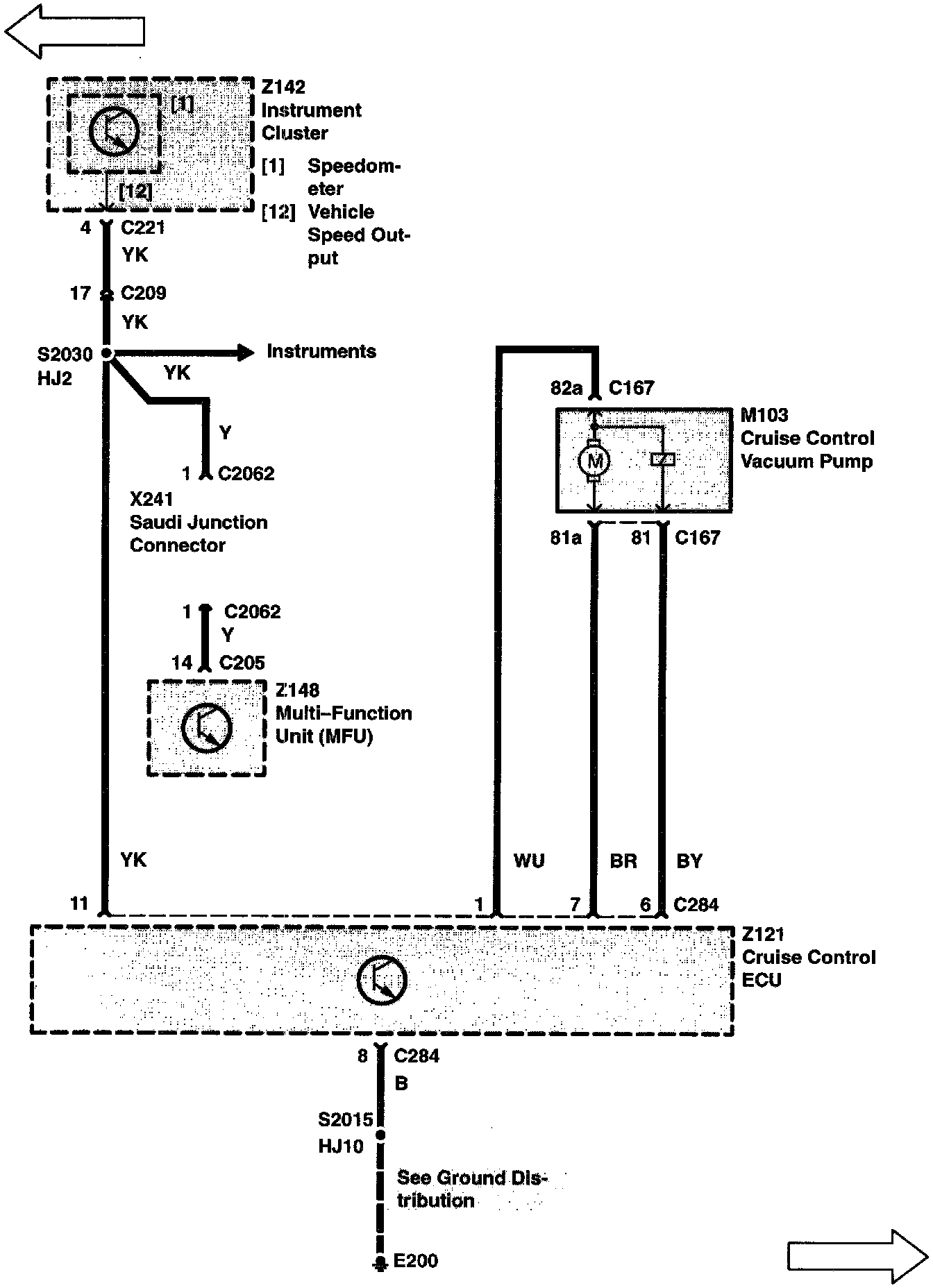

B5-6:

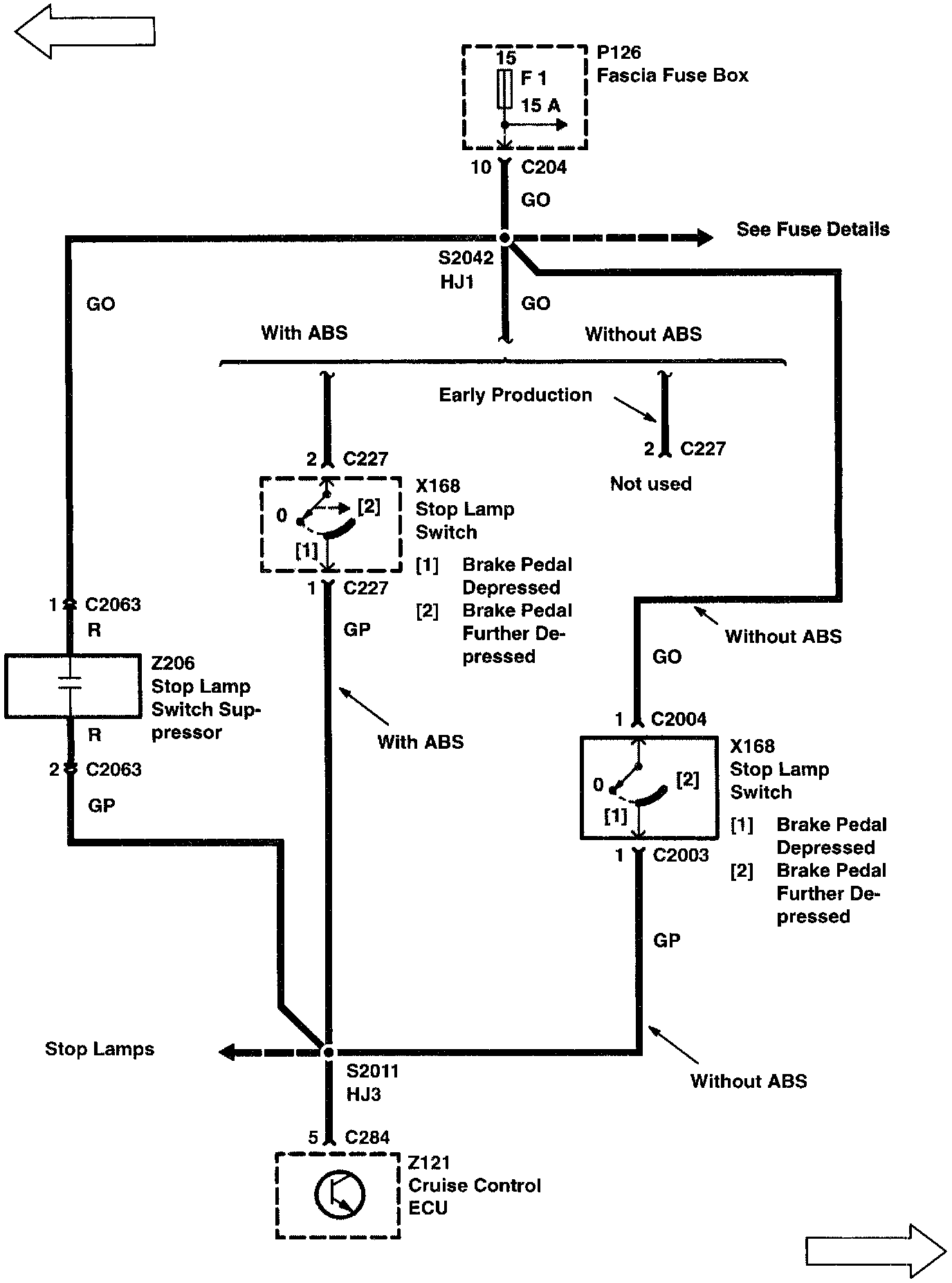

B5-7:
