Alarm Module: Service and Repair

Remove
1. Disconnect battery negative lead.
2. Remove steering wheel. If necessary, use puller LRT-57-01 4.
3. Remove instrument panel.

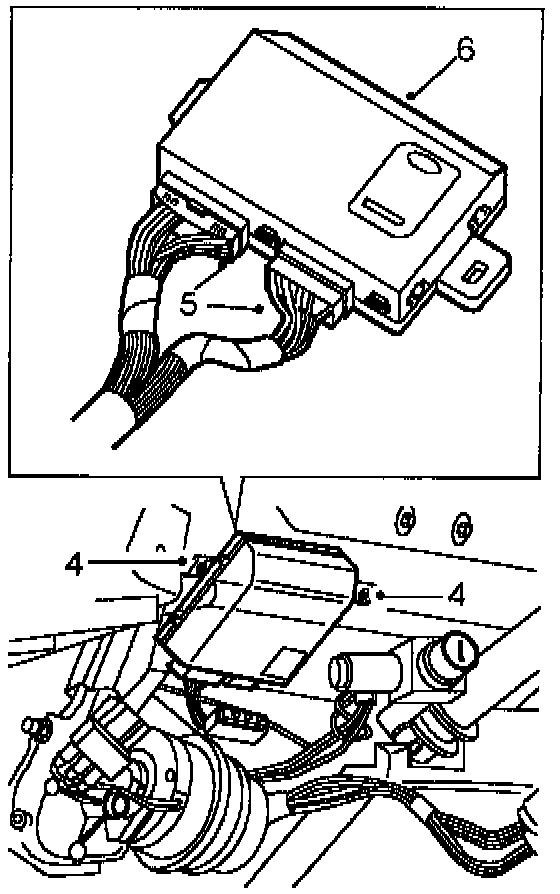

4. Remove 2 screws securing immobilization ECU to fascia cowl.
5. Release ECU and disconnect both multi-plugs.
6. Remove ECU.

NOTE: A new ECU must be initialized using TestBook.

Refit
7. Reconnect multi-plugs and secure ECU to fascia cowl.
8. Fit instrument panel.
9. Fit steering wheel.
10. Reconnect battery negative lead.
