Air Conditioning Switch: Service and Repair

Temperature Control Switch, Fan Switch

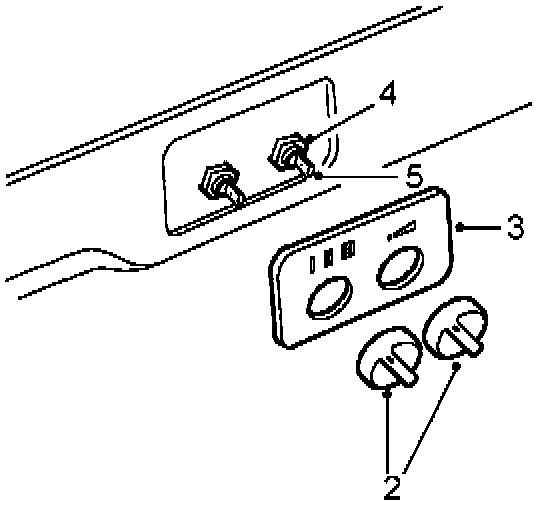

Remove
1. Remove fascia duct bezel. Refer to "Fascia Duct Bezel Replacement". Service and Repair





2. Pull control knobs from switches.
3. Remove switch panel.
4. Remove nut securing switch to bezel.
5. Remove switch.

NOTE: Fan switch to left.

Refit
6. Fit temperature control switch. Position capillary tube inside duct to RH side.
7. Fit and tighten nut securing switch to bezel.
8. Fit switch panel.
9 Fit control knobs.
10. Fit fascia duct bezel. Refer to "Fascia Duct Bezel Replacement". Service and Repair
11. Carry out system test. Refer to: Testing and Inspection.
