Fluid - A/T: Service and Repair

1. Ensure vehicle is level. Place drain tray under-drain plug.

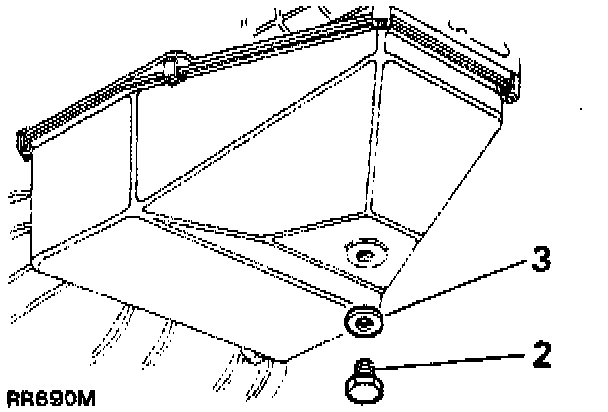

Drain Plug:

2. Remove gearbox dipstick, located at rear of RH rocker cover, to aid oil drainage. Remove drain plug from bottom of oil pan and allow fluid to drain completely.
3. Install plug using a NEW sealing washer. Tighten to 10 Nm (96 inch lbs.).
4. Remove and replace fluid screen.





5. Refill and Check Fluid Level. Refill or top-off with correct quantity and grade of fluid.

NOTE: The fluid level must checked when fluid is COLD and engine idling in "N".

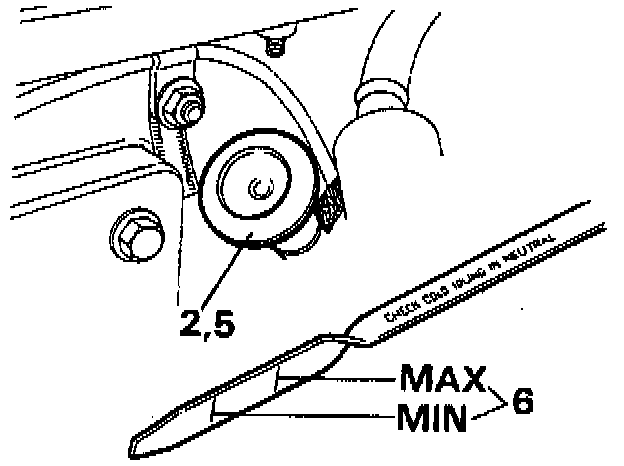

6. With "P" selected, start and run engine. Apply footbrake, move selector slowly to position "1" then back to "N". Check fluid level, this must be between the 2 level marks on dipstick.
