Transmission Identification Number

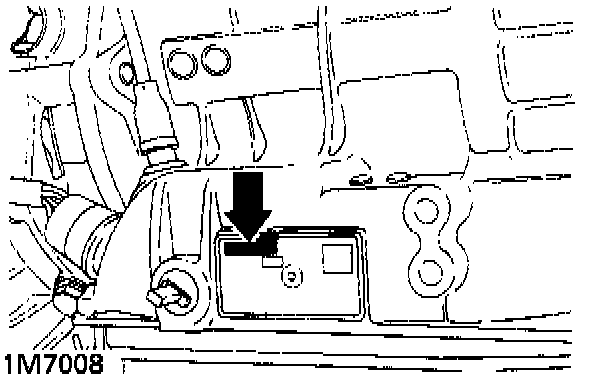

Automatic gearbox serial number

The serial number is stamped on a plate attached to the LH side of the casing.

Transfer gearbox serial number

The serial number is stamped on the LH side of the gearbox casing below the mainshaft rear bearing housing adjacent to the bottom cover.

Front axle serial number

Serial number is stamped on the front of LH axle tube.

Rear axle serial number

Serial number is stamped on rear of LH axle tube.
