Fuel Filter: Locations

Fuel Filter Location

Important Disclaimer: Applicable only to early 2002 models.

Fuel Filter:

The fuel filter is mounted on the chassis, near the passenger-side rear wheel arch. An arrow on the filter body indicates the direction of fuel flow





Important Disclaimer: Applicable only to late 2002 models.

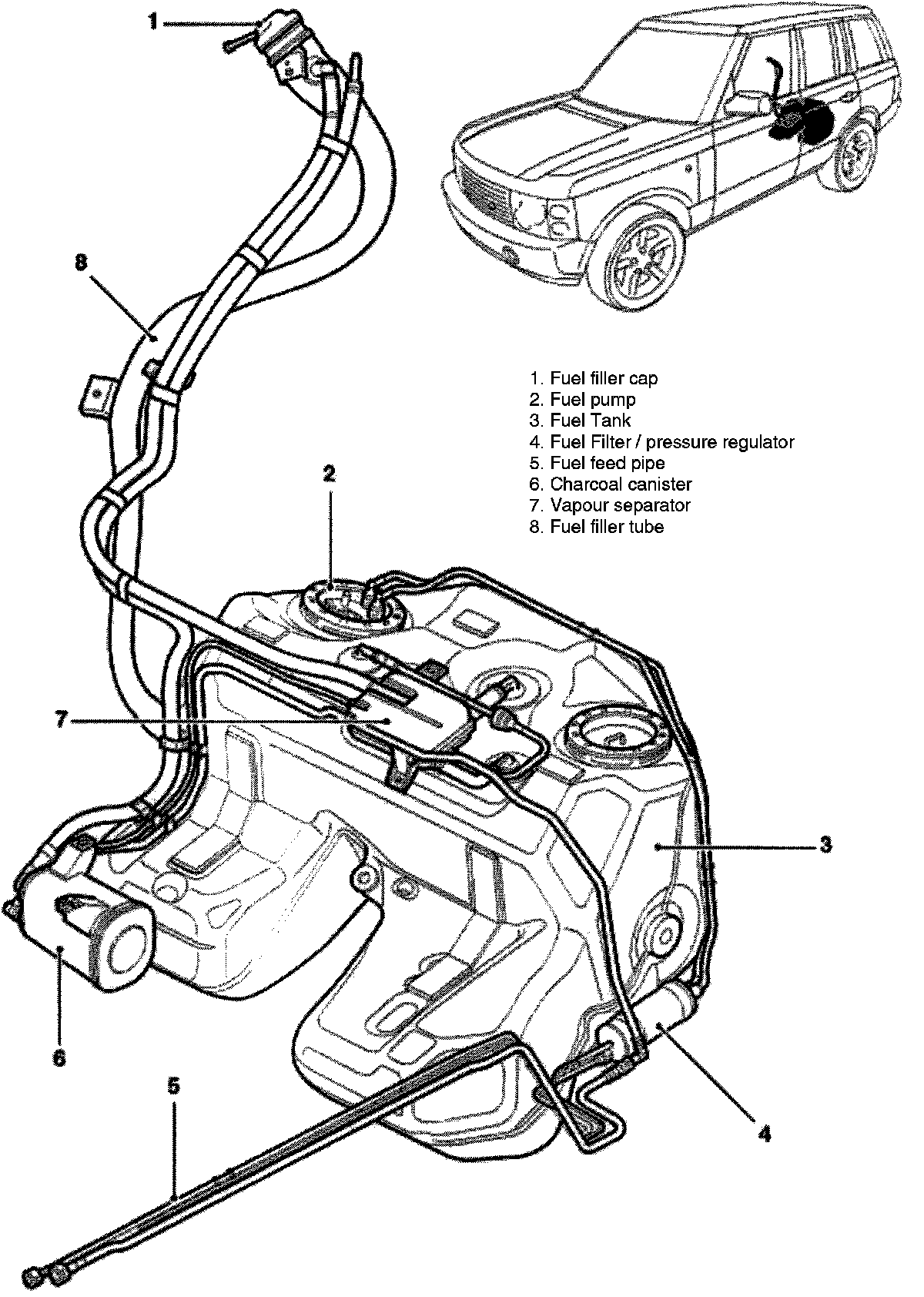

The fuel filter/pressure regulator is mounted on the lower right hand side of the tank on the right hand side. The component us covered by a plastic tray to protect them when driving off-road. The undertray has an inspection cover to enable access to the charcoal canister and the fuel filter.
