Electrical Diagrams

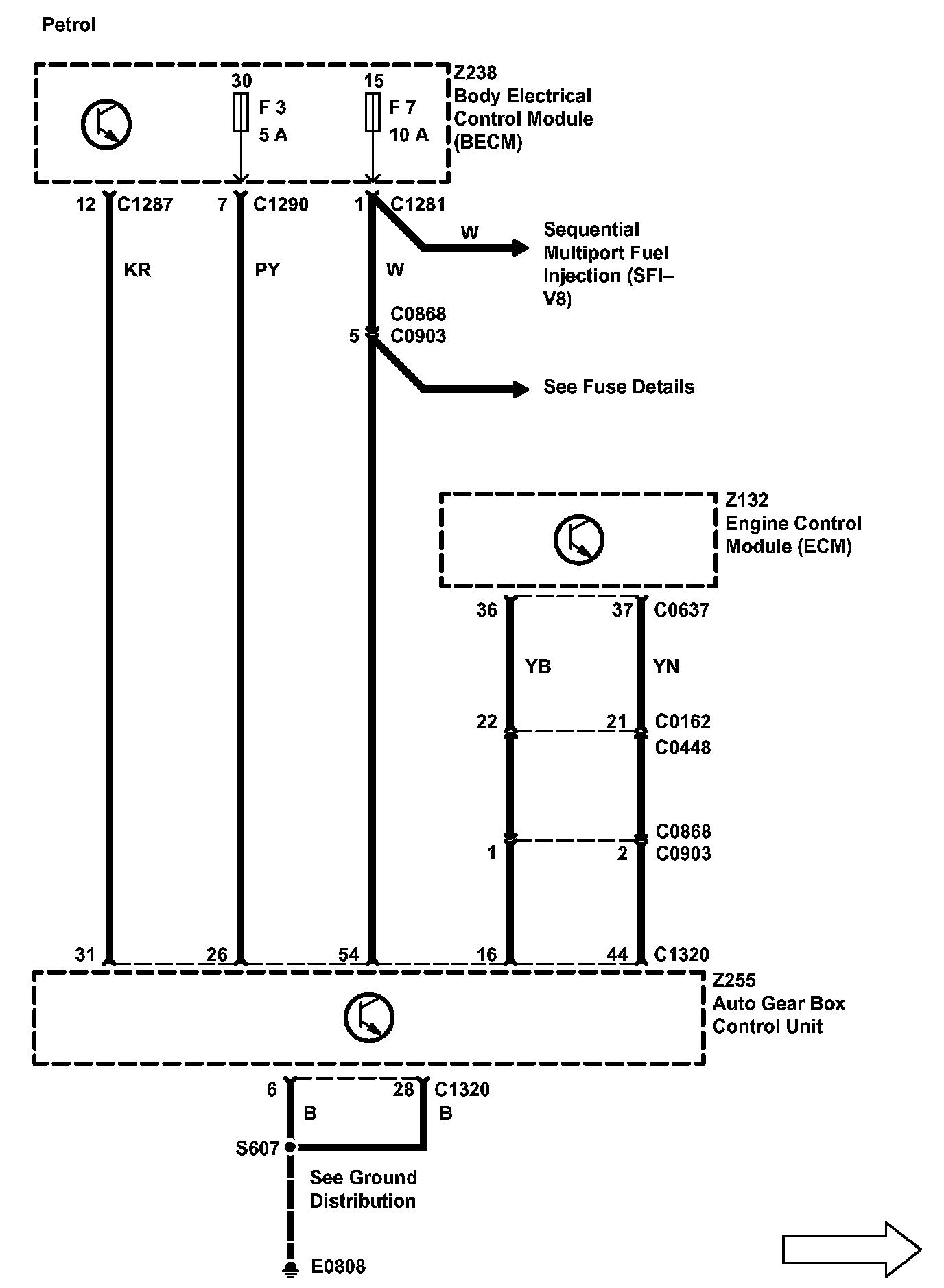

Automatic Gearbox (Sheet 1):

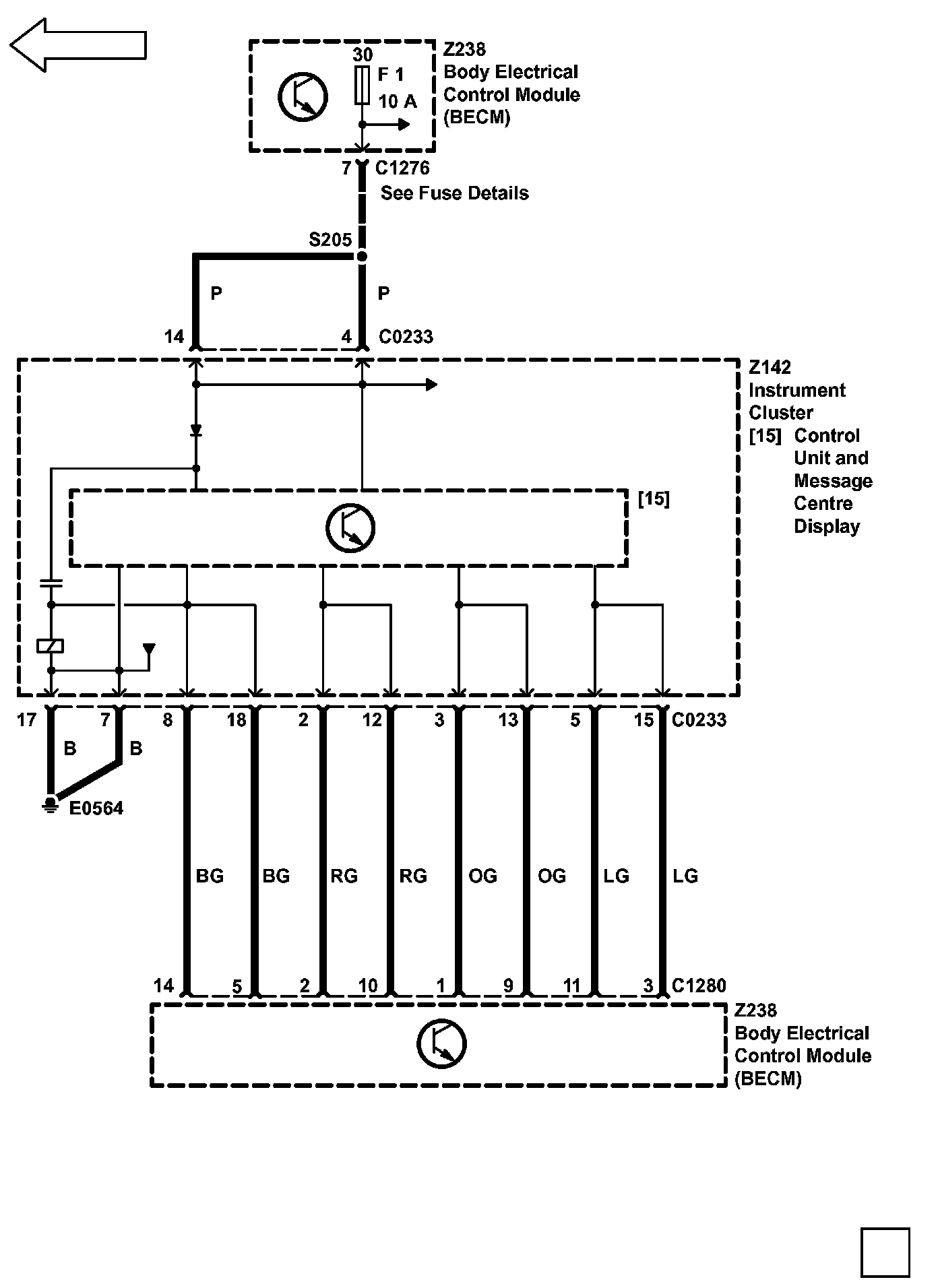

Automatic Gearbox (Sheet 2):

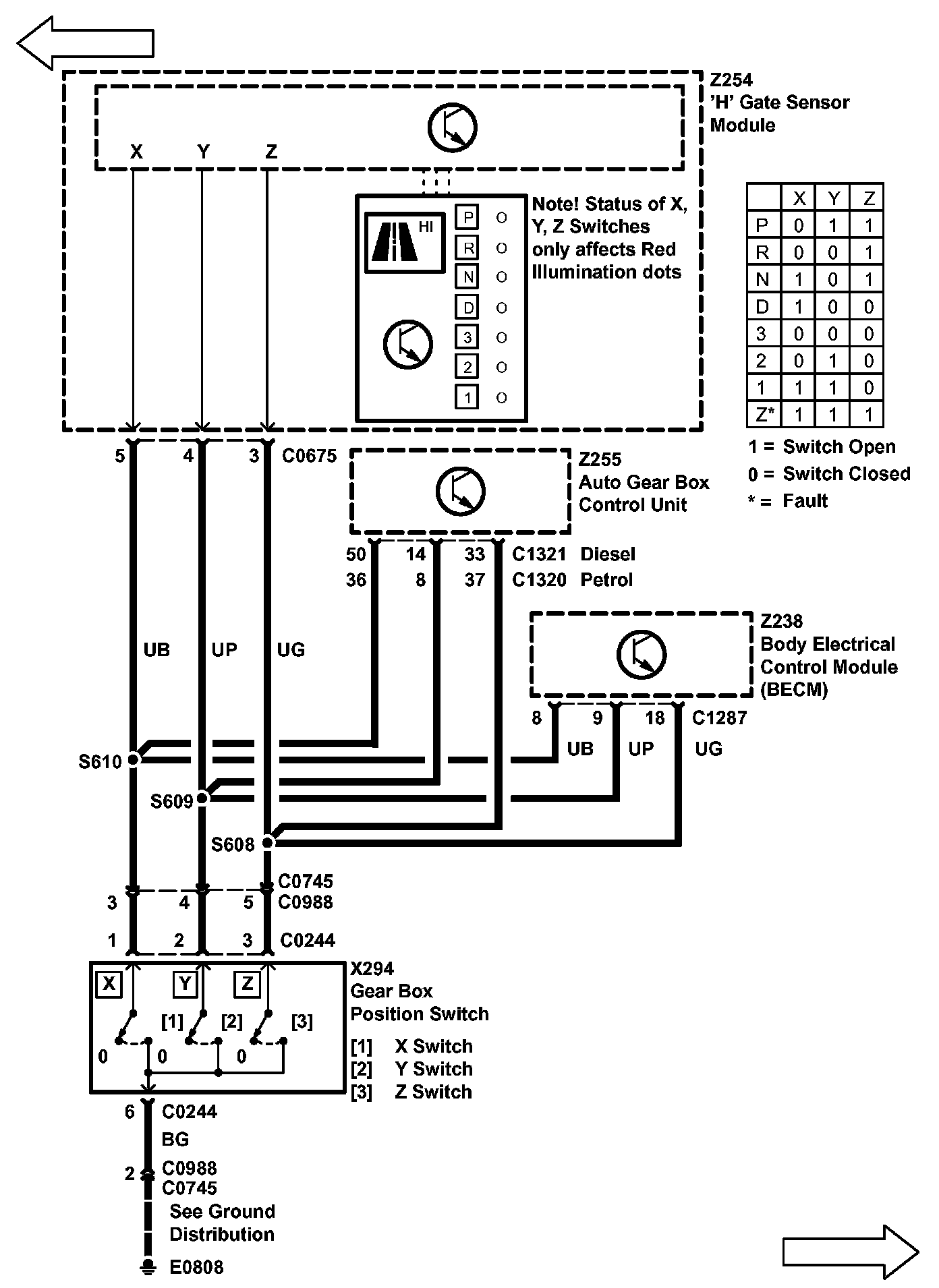

Automatic Gearbox (Sheet 3):

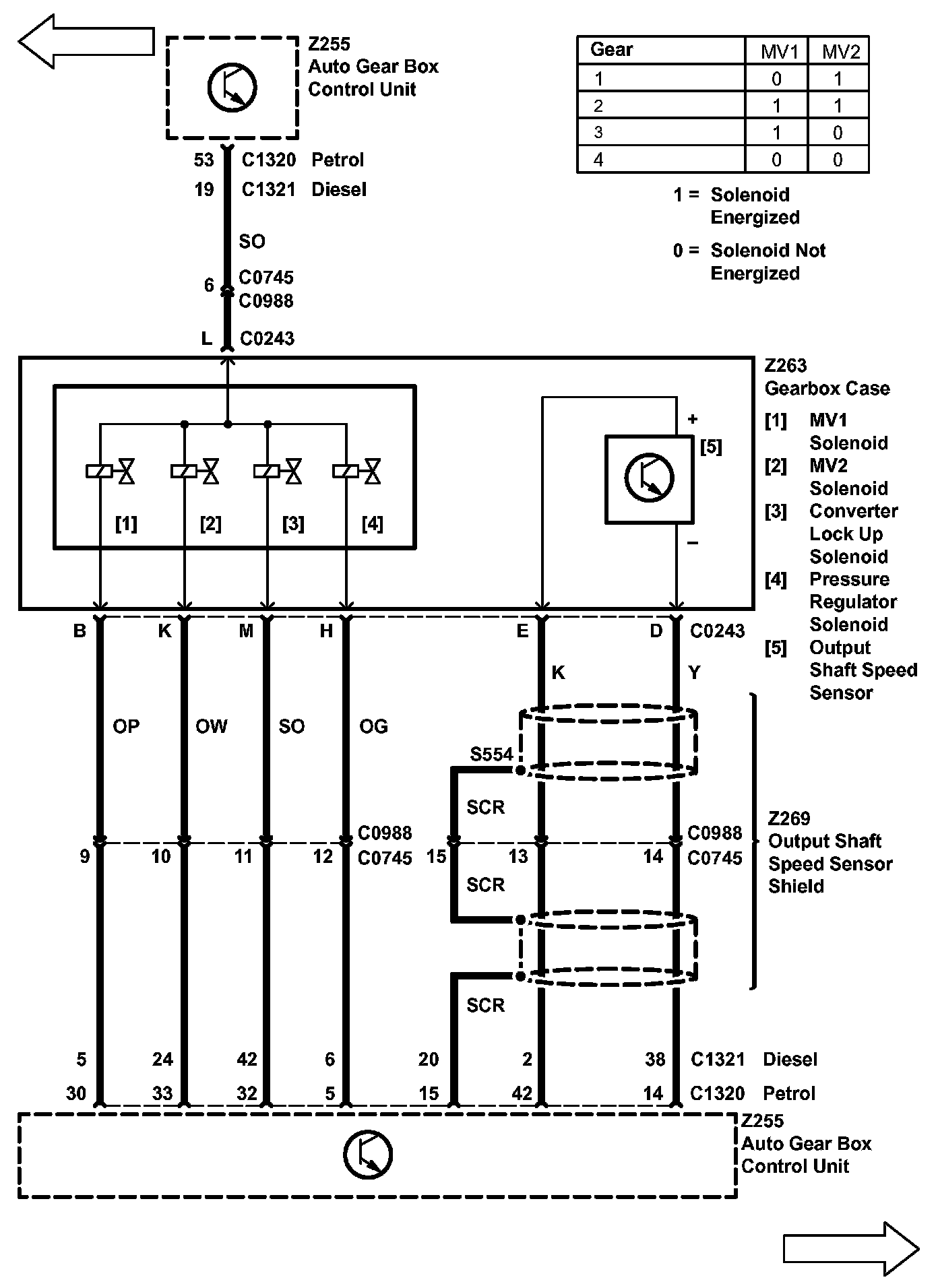

Automatic Gearbox (Sheet 4):

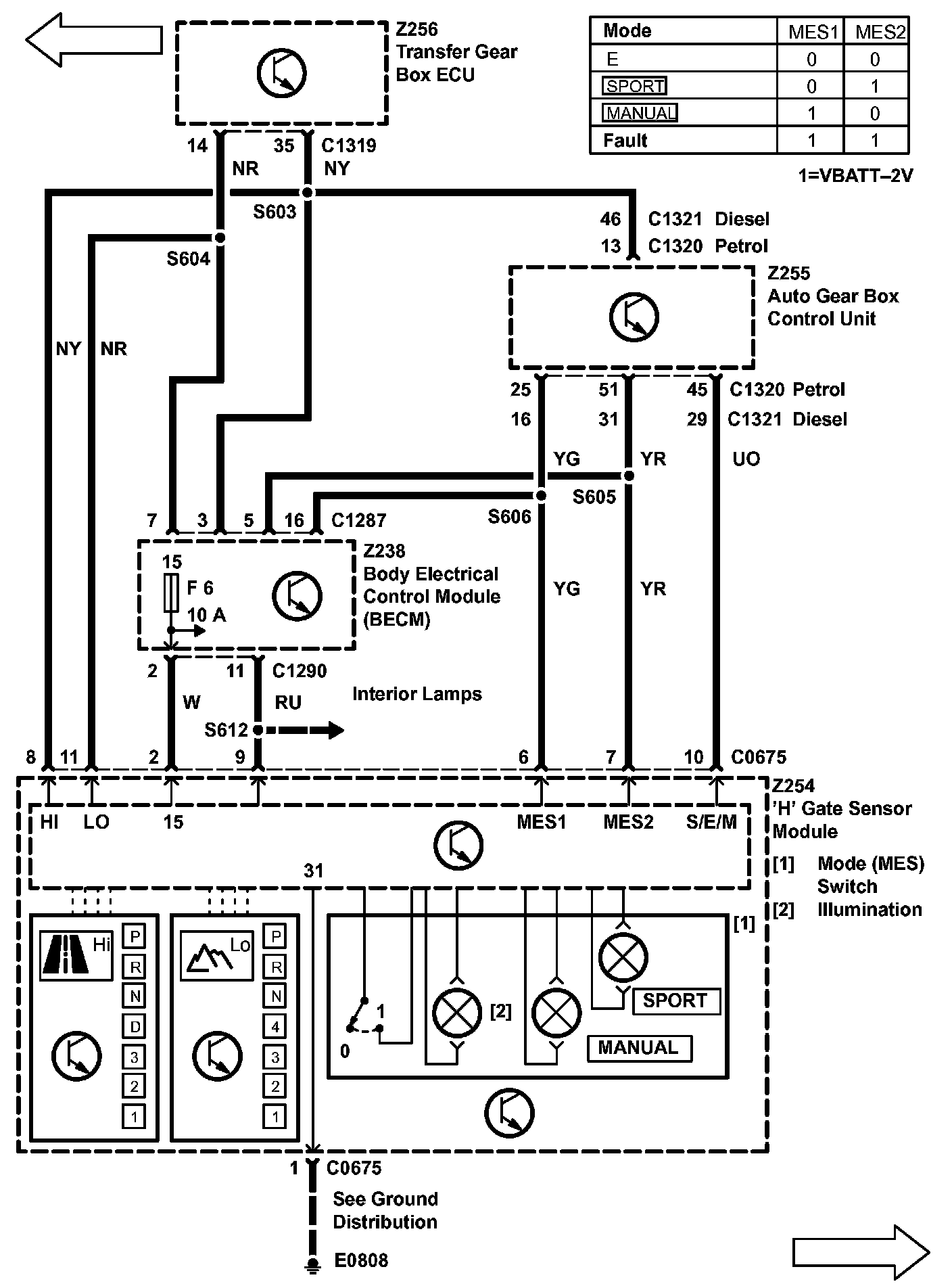

Automatic Gearbox (Sheet 5):
Automatic Gearbox (Sheet 6):
Connector Locations: The location views for connectors depicted within these diagrams can be found via the connector's base number (i.e. C0570) at Vehicle/Locations/Connectors/Master Location Index. Master Location Index
Connector Views: The connector pin out views for connectors depicted within these diagrams can be found via the connector's base number (i.e. C0570) at Vehicle/Diagrams/Connector Views. Connector Views
