Extension Housing - Type A and B Gearbox - Refit

Extension Housing - Type A And B Gearbox -Refit

1. Remove slave bolts from centre plate.

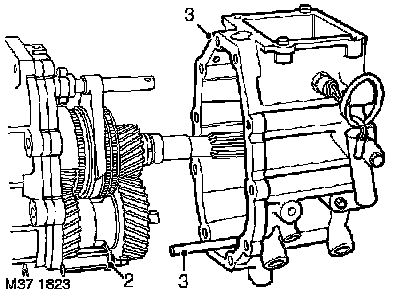

2. Fit oil filter.
3. Apply sealant, Part No. STC 3254 to mating surfaces and fit extension housing ensuring oil pipe locates in filter and drive locates in oil pump.

CAUTION: Do not use force, if necessary, remove extension housing and re - align oil pump drive.

4. Apply Loctite 290 to threads of extension housing securing bolts, fit bolts and tighten by diagonal selection to 25 Nm (18 ft. lbs.).

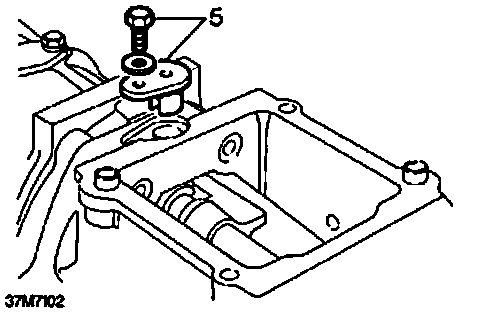

5. Lubricate a new '0' ring with gearbox oil and fit to extension housing interlock spool retainer. Fit retainer, fit bolt and washer and tighten bolt to 8 Nm (6 ft. lbs.).

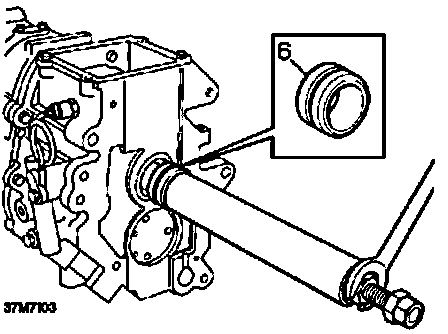

6. Using LRT-37-015 and LRT-37-021 press on output shaft oil seal collar, narrow portion of collar leading.
