Gear Change Lever Yoke - Type B Gearbox - Refit

Gear Change Lever Yoke - Type B Gearbox - Refit

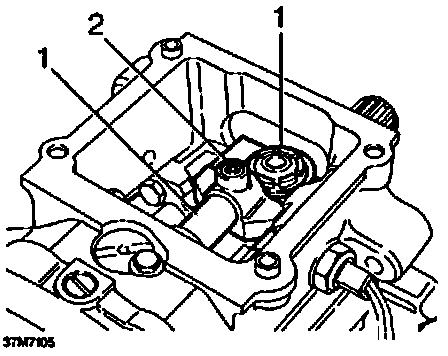

1. Position gear change lever yoke on selector shaft with ball facing towards output shaft.
2. Apply Loctite 290 to threads of a new setscrew, fit and tighten screw to 25 Nm (18 ft. lbs.).

CAUTION: Ensure end of setscrew locates in hole in selector shaft.
