Selector Quadrant - Type A Gearbox - Refit

Selector Quadrant - Type A Gearbox - Refit

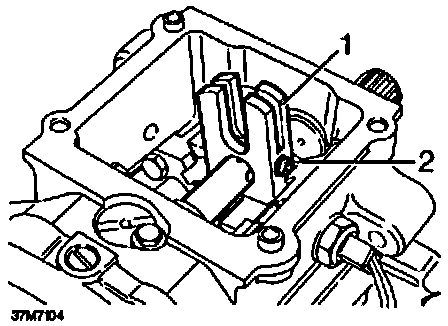

1. Position selector quadrant to selector shaft.
2. Apply Loctite 290 to threads of a new setscrew. Fit and tighten screw to 25 Nm (18 ft. lbs.).

CAUTION: Ensure end of setscrew locates in hole in selector shaft.

3. Move selector shaft to neutral position.
