Rear Output Shaft Drive Flange Replacement






REMOVAL

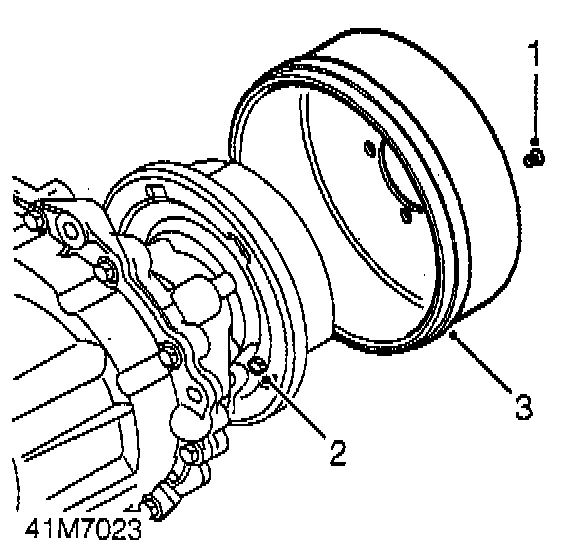

1. Remove screw securing brake drum to flange.
2. Loosen park brake drum adjusting screw.
3. Remove brake drum.

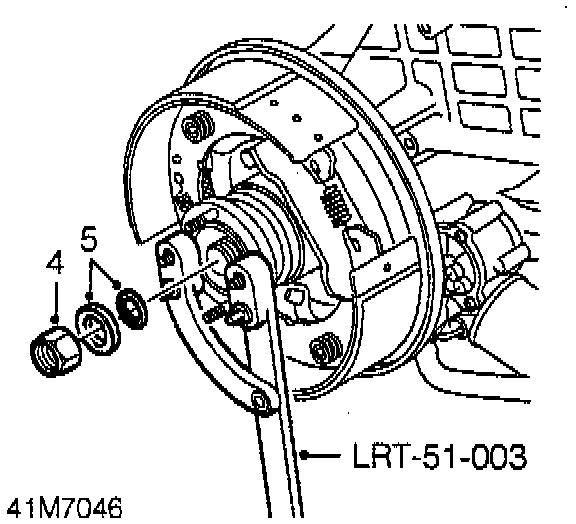

4. Using LRT-51-003 to restrain drive flange, remove nut securing drive flange to rear output shaft.
5. Collect washer and seal.

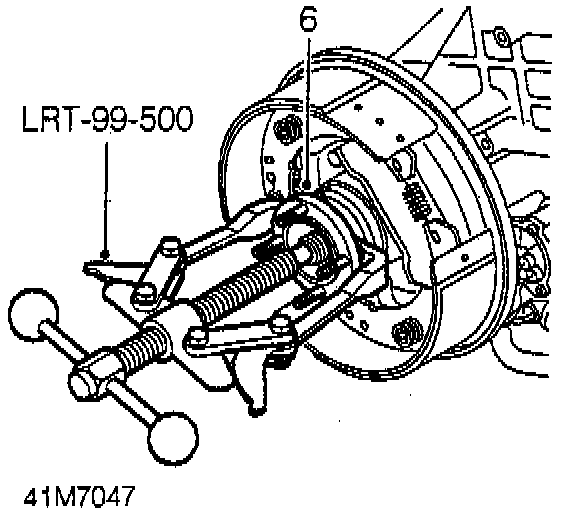

6. Using LRT-99-500 if necessary, remove flange from output shaft.

INSTALLATION
1. Clean running surface of drive flange. Ensure all traces of rubber are removed.

CAUTION: Do not use a metal scraper as this may damage sealing surface.

2. Install drive flange to rear output shaft.
3. Install seal, washer and new nut to rear output shaft.
4. Using LRT-51-003 to restrain drive flange, tighten nut to 220 Nm (162 ft. lbs.).
5. Install brake drum to drive flange and secure with screw.
6. Adjust park brake drum screw.
