Television

TELEVISION

The television system receives television signals from television antennas in the rear side screens. The antennas are connected to the television tuner via coaxial leads.

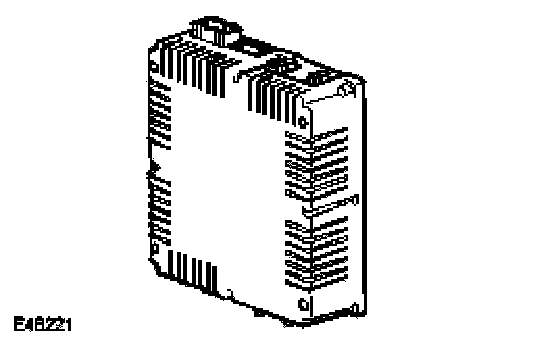

Television Tuner





The television tuner module is located in the rear RH side of the luggage compartment. The television tuner is connected to the rest of the video system on the MOST bus. Audio and control signals are passed on the MOST bus while video is transmitted via a coaxial cable to the Touch Screen Display (TSD).

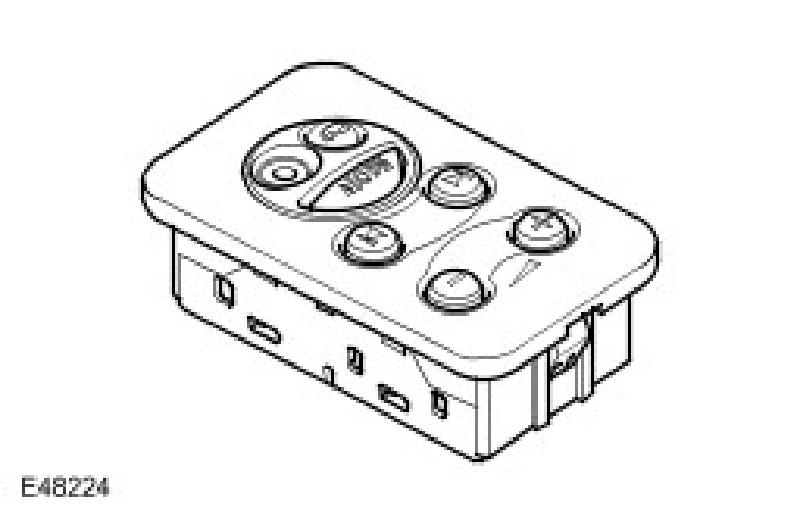

Television audio can be heard through the vehicle speakers and the remote control rear headphone modules. The audio will continue to be heard whilst the vehicle is moving, however the television picture will stop displaying once the vehicle starts moving.

Television Tuner Module Pinout Table C2117
