Steering Wheel Controls

STEERING WHEEL CONTROLS

Steering Wheel Audio Controls

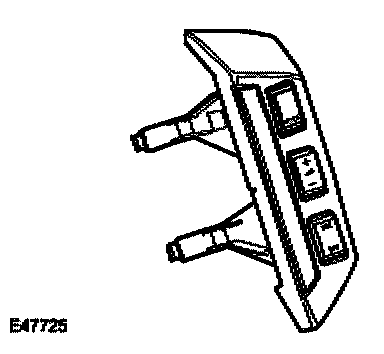

The IHU can be remotely controlled via steering wheel mounted controls. The steering wheel controls are mounted to the right hand side of the steering wheel.

The switches are a resistive ladder type. The IHU supplies a reference voltage to the switches, which then return an altered voltage to the IHU depending on which switch is pressed.

The controls allow the user to adjust the volume, change CD tracks/ radio pre-sets, answer and end a phone call (where a phone is fitted) and use the voice recognition system.
