Initial Inspection and Diagnostic Overview

Inspection and Verification

1. Verify the customer concern.

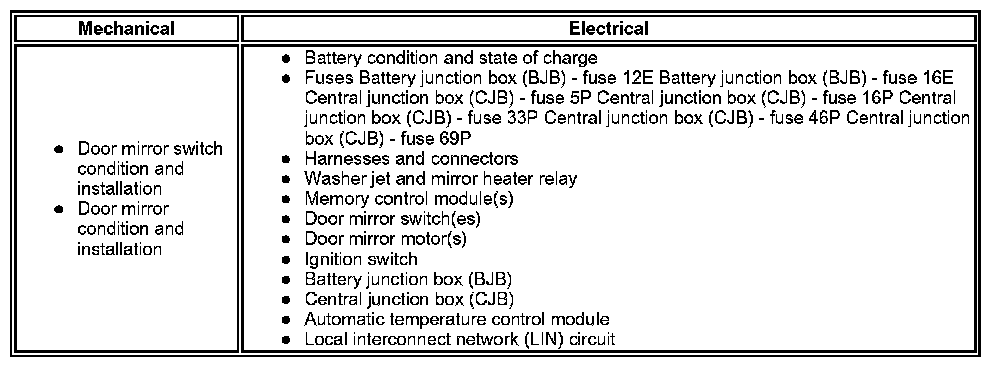

2. Visually inspect for obvious mechanical or electrical faults.







3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4. Use the approved diagnostic system or a scan tool to retrieve any DTCs before moving onto the symptom chart or DTC index.
^ Because the DTCs are stored in more than one module, a complete vehicle read is recommended.
^ Make sure that all DTCs are cleared following rectification.
