Roof Opening Panel

Roof Opening Panel

Removal

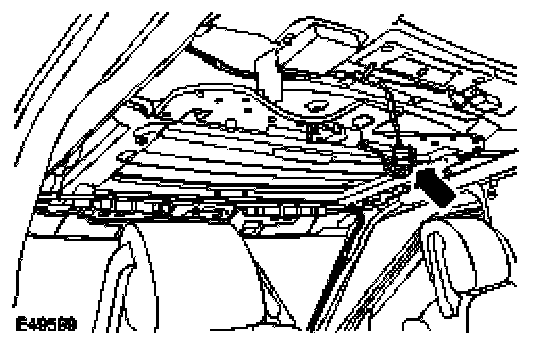

1. Remove the headliner.
2. Release the 4 drain hoses from the roof opening panel.
3. Disconnect the roof opening panel motor electrical connector.





4. With assistance, remove the roof opening panel assembly.
^ Remove the 11 bolts.





CAUTION: Do not depress the RH plunger to remove the blind.

NOTE:
^ Do not disassemble further if the component is removed for access only.
^ Note the fitted position.

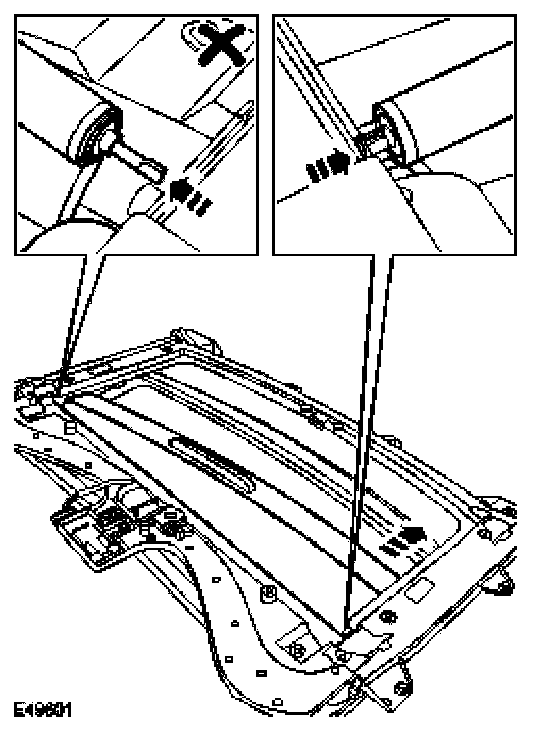

5. Remove the roof opening panel blind.
^ Twist to release the handle.
^ Depress the LH plunger.

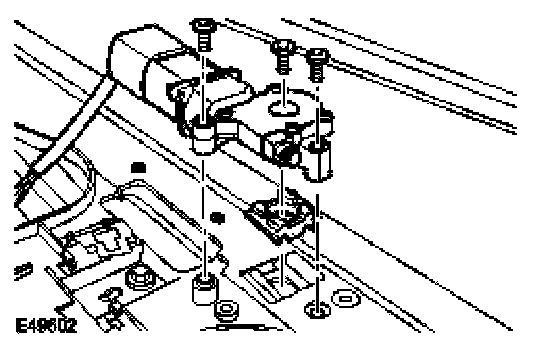

6. Remove the roof opening panel motor.
^ Remove the 3 Torx screws.
^ Install the roof opening panel motor.





INSTALLATION
1. Install the roof opening panel motor.
^ Install the spacer.
^ Tighten the Torx screws to 4 Nm (3 ft. lbs.).

NOTE: Align to the position noted on removal.

2. Install the roof opening panel blind.
^ Secure in the guides.
^ Locate the tensioner peg.
^ Depress the LH plunger.

3. With assistance, install the roof opening panel assembly.
^ Clean the component mating faces.
^ Tighten the bolts to 10 Nm (7 ft. lbs.).

4. Connect the roof opening panel motor electrical connector.
5. Connect the drain hoses.
^ Make sure the drain hoses are clear prior to connection.

6. Install the headliner.
7. Using T4, configure a new roof opening panel.
8. If the battery has been disconnected, the one touch and anti-trap function will become inoperative. Close the roof opening panel and continue to hold the switch for a further 20 seconds to allow the sunroof to complete a full cycle. This will complete the roof opening panels calibration routine and reset these functions.
