Roof Opening Panel Glass

Roof Opening Panel Glass

Removal
1. Open the roof opening panel blind.
2. Open the roof opening panel to the tilt position.

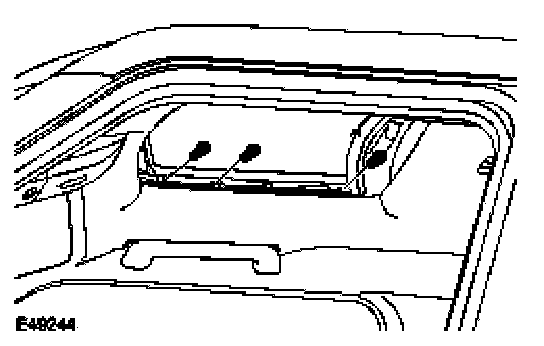

3. Remove the roof opening panel glass.
^ Remove the 3 Torx screws.
^ Repeat the above procedure for the other side.





Installation
1. Install the roof opening panel glass.
^ Install the Torx bolts, but do not tighten fully at this stage.

2. Align the roof opening panel glass.
