Parking Assist Distance Sensor
>>

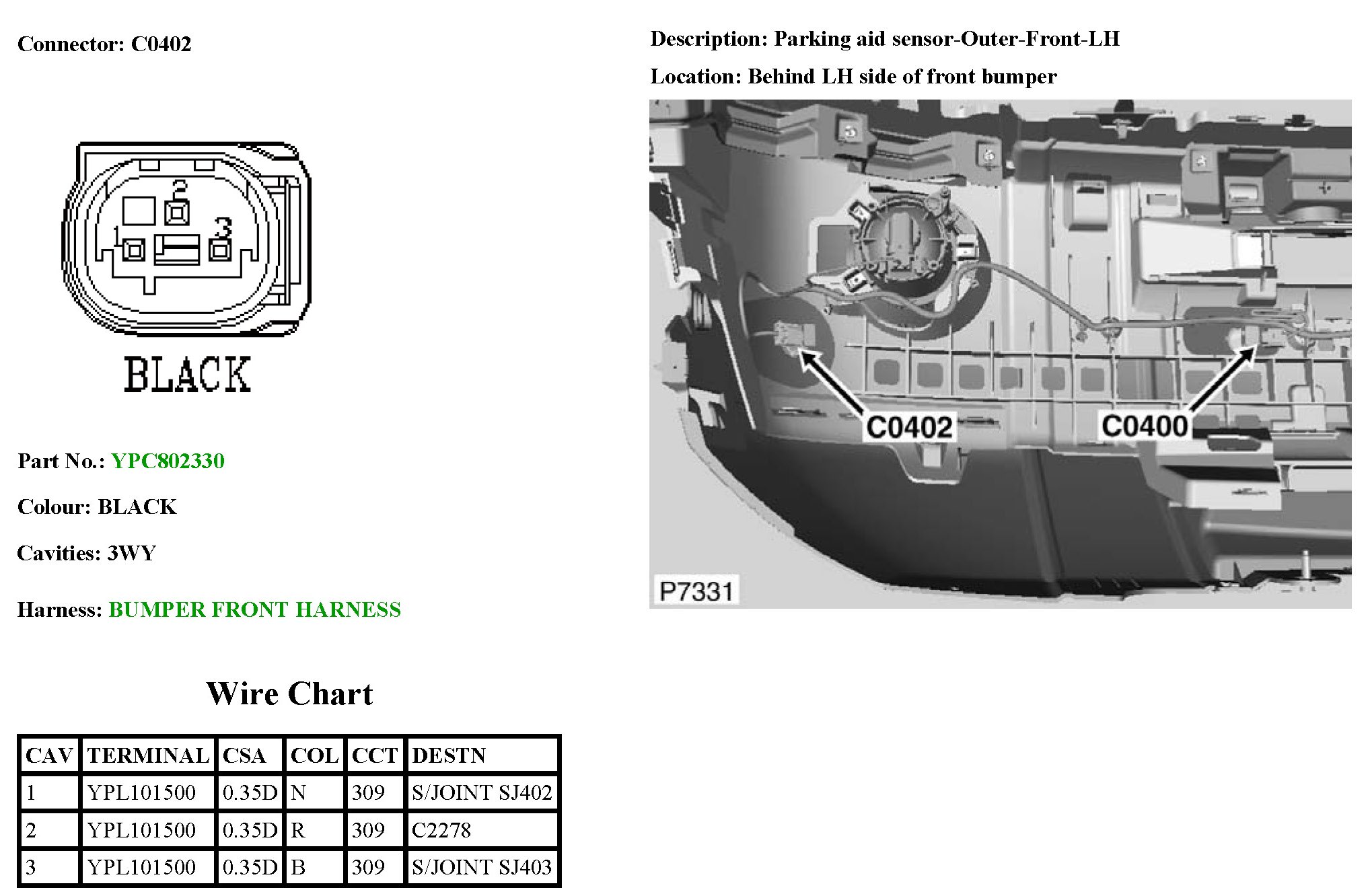

Parking Aid Sensor-Outer-Front-LH
Parking Aid Sensor-Outer-Front-LH
C0402:
