Instrument Cluster

Instrument Cluster

Removal
1. Fully extend the steering column for access.
2. Remove the steering wheel.

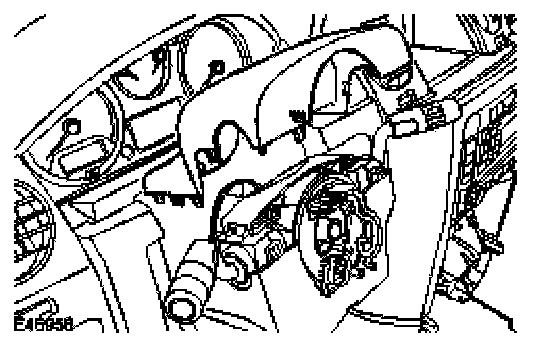

3. Remove the steering column upper shroud.
^ Release the 4 clips.

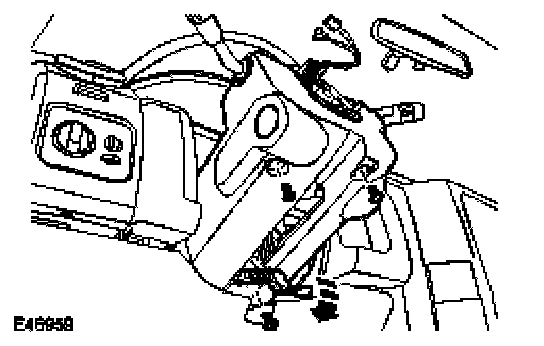

4. Remove the steering column lower shroud.
^ Remove the 3 Torx screws.
^ Release the steering column adjustment lever.

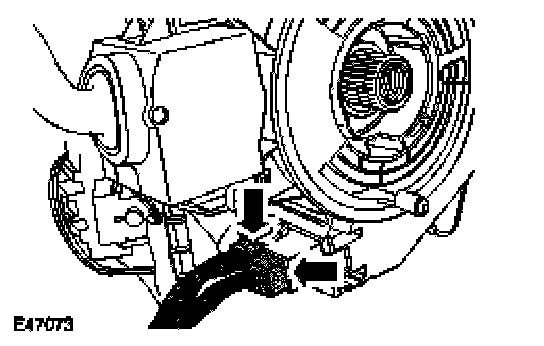

5. Disconnect the 2 electrical connectors from the steering column multifunction switches.

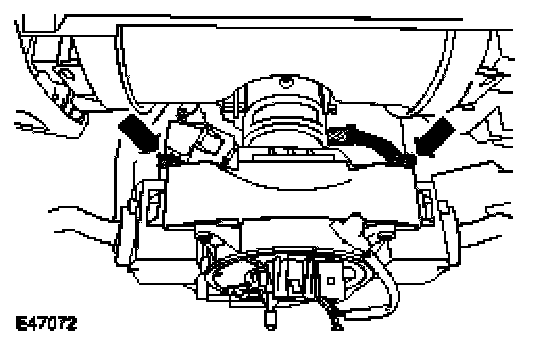

6. Disconnect the 2 electrical connectors from the clockspring.

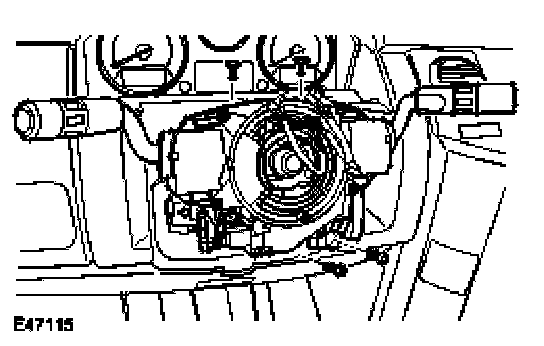

7. Remove the steering column switch assembly.
^ Remove the 4 Torx bolts.

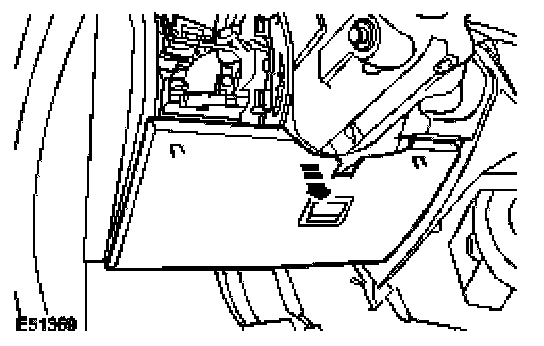

8. Remove the instrument panel access panel.
^ Release the 2 clips.

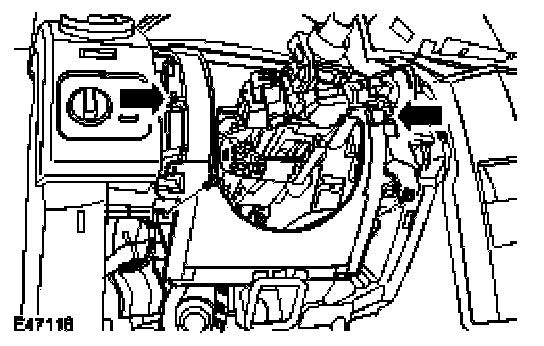

9. Remove the steering column side trim panel.
^ Release the clips.
^ Repeat the above procedure for the other side.





10. Remove the steering column gaiter panel.
^ Remove the 2 Torx screws.
^ Release the 2 clips.





11. Remove the instrument cluster.
^ Remove the 2 Torx screws.
^ Disconnect the electrical connector.





Installation
1. Install the instrument cluster.
^ Connect the electrical connector.
^ Tighten the Torx screws.

2. Install the steering column gaiter panel.
^ Secure with the clips.
^ Tighten the Torx screws.
. Install the steering column side trim panel.
^ Secure with the clip.
^ Repeat the above procedure for the other side.

4. Install the instrument panel access panel.
^ Secure with the clips.

5. Install the steering column switch assembly.
^ Tighten the Torx bolts to 3 Nm (2 ft. lbs.).

6. Connect the clockspring and multifunction switch electrical connectors.
7. Install the steering column shrouds.
^ Tighten the Torx screws.

8. Install the steering wheel.
9. Using T4, configure a new instrument cluster.
