Headlamps - Adaptive Front Lighting System

Headlamps - Adaptive Front Lighting System (Sheet 1):

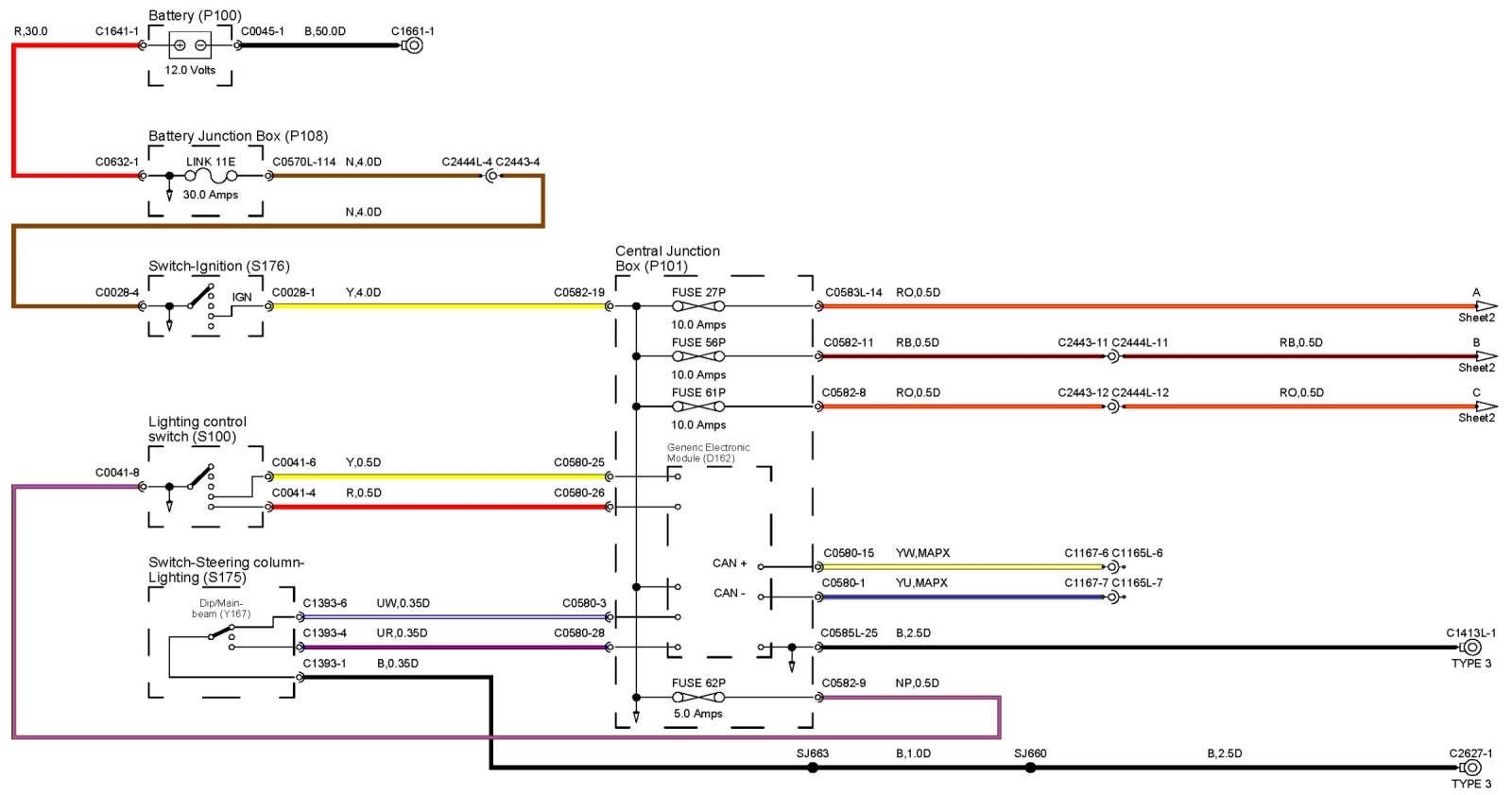

Headlamps - Adaptive Front Lighting System (Sheet 2):

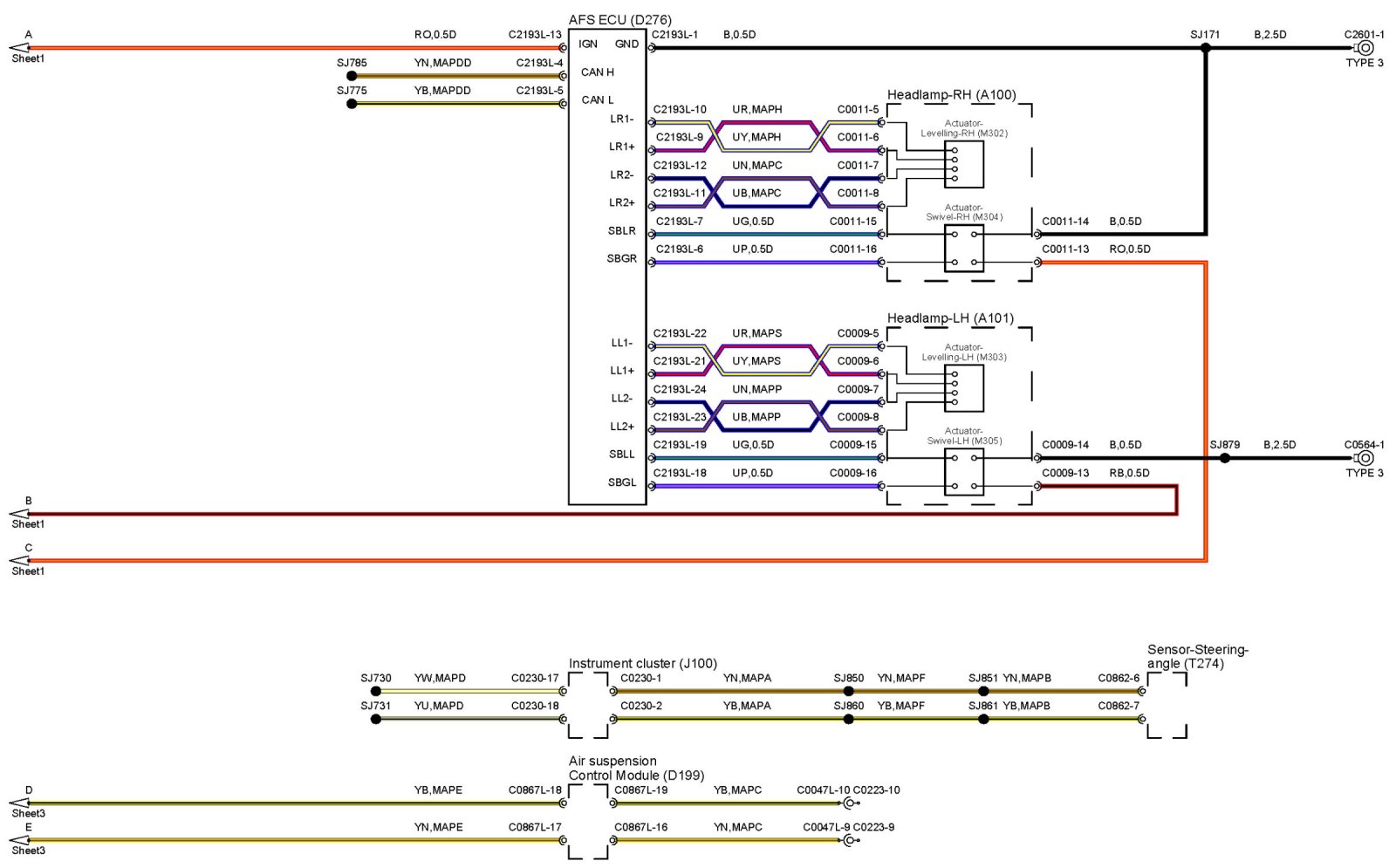

Headlamps - Adaptive Front Lighting System (Sheet 3):

Locations: The location views for connectors and components depicted within these diagrams can be found via the connector's base number (i.e. C0570) at Vehicle/Locations/Connectors. Connector Locations

Connector Views: The connector pin out views for connectors depicted within these diagrams can be found via the connector's base number (i.e. C0570) at Vehicle/Diagrams/Connector Views. Connector Views
