Air Cleaner Housing: Service and Repair

Air Cleaner

Service Repair No - 19.10.01

Removal
1. Disconnect the battery ground cable.
2. Release the air cleaner intake pipe.
^ Loosen the clip.

3. Disconnect the mass air flow (MAF) sensor electrical connector.

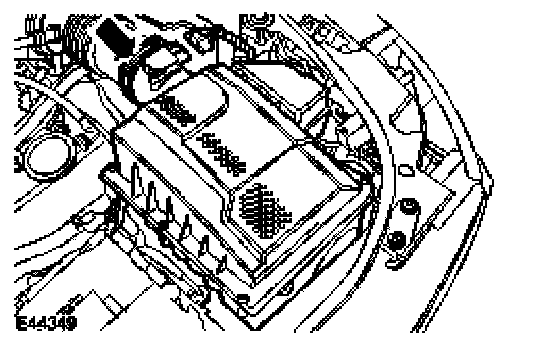

4. Remove the air cleaner assembly.

Installation

NOTE: When installing the air cleaner, make sure the locating pegs fit securely into the grommets.

1. To install, reverse the removal procedure.
