Engine Controls (Sheet 3)

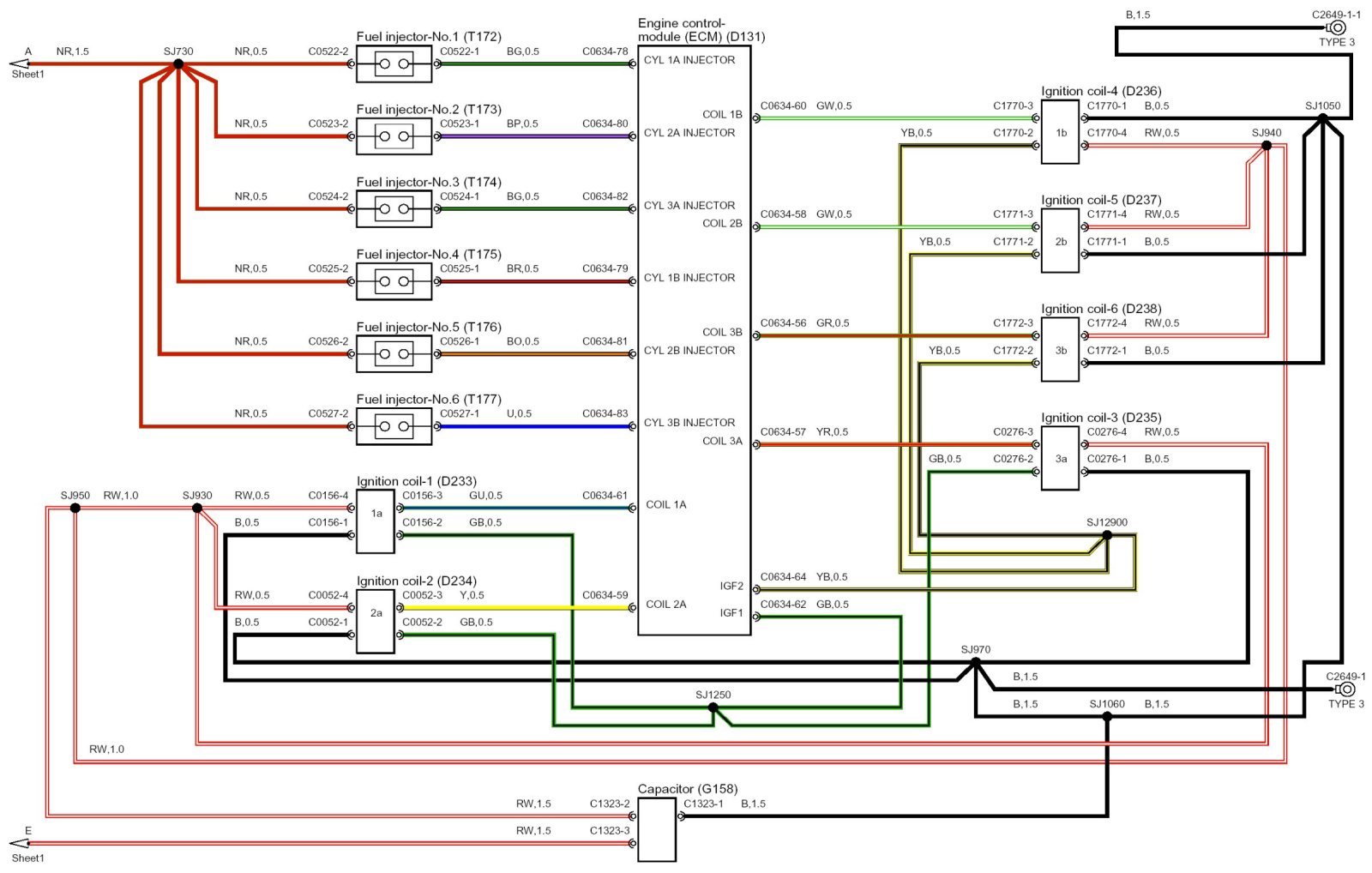

Electronic Engine Controls (Sheet 3):

Next Diagram Engine Controls (Sheet 4)
Previous Diagram Engine Controls (Sheet 2)

Locations: The location views for connectors and components depicted within these diagrams can be found via the connector's base number (i.e. C0570) at Vehicle/Locations/Connectors. Connector Locations

Connector Views: The connector pin out views for connectors depicted within these diagrams can be found via the connector's base number (i.e. C0570) at Vehicle/Diagrams/Connector Views. Connector Views
