Range Rover (LM) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Brake Control Module
>>

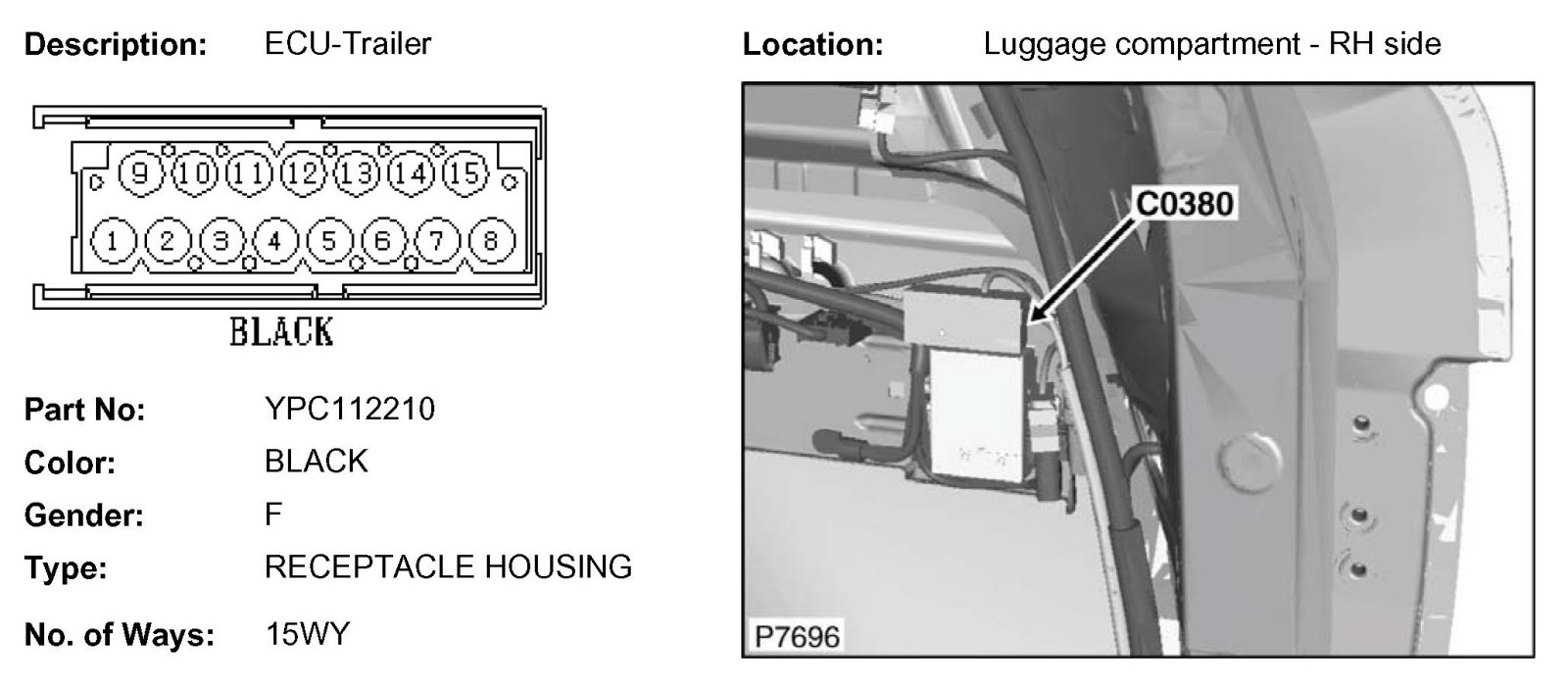

ECU-Trailer
ECU-Trailer

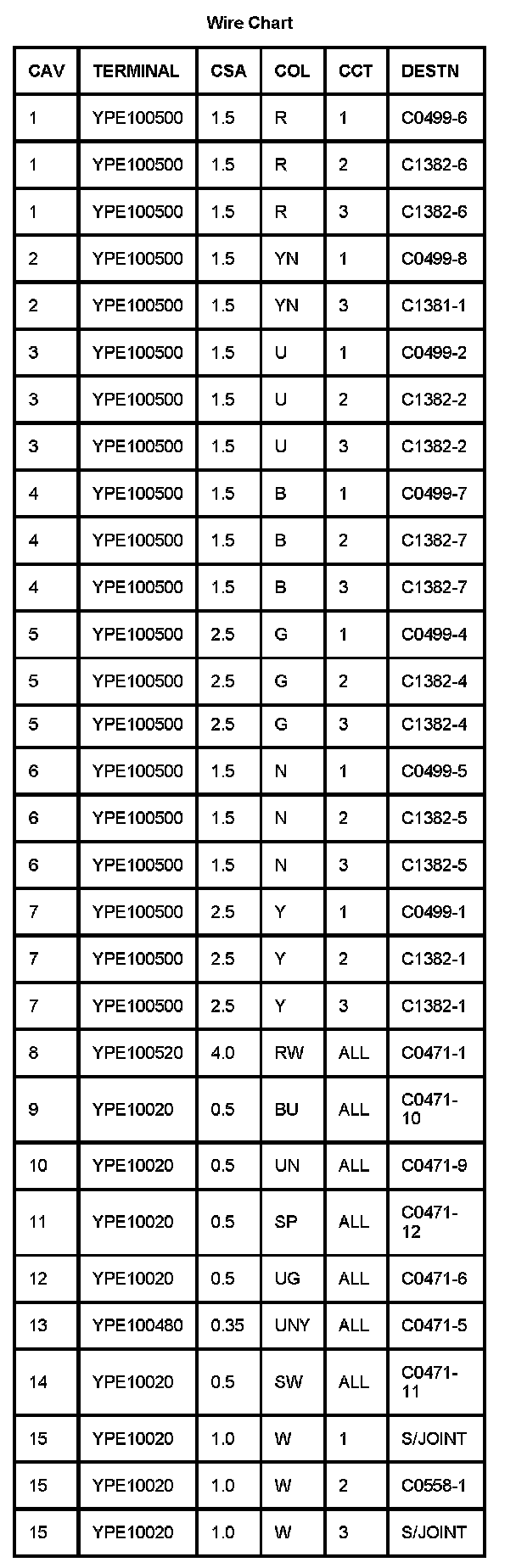

C0380 (Part 1):
C0380 (Part 2):
