Operation CHARM
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
2006
>>
Range Rover (LM) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Steering Column
>>
Steering Column Relay
Steering Column Relay

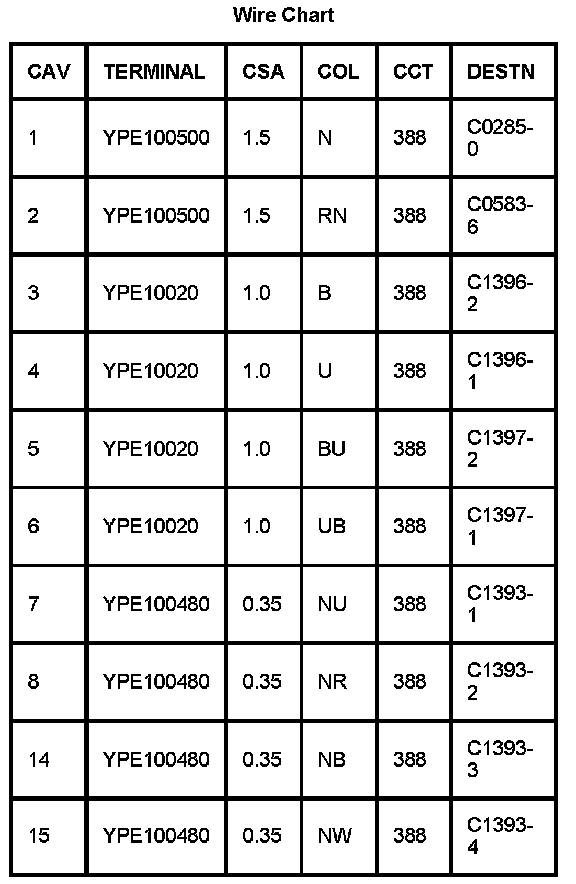

C1392 (Part 1):
C1392 (Part 2):
