Terrain Response - Component Location

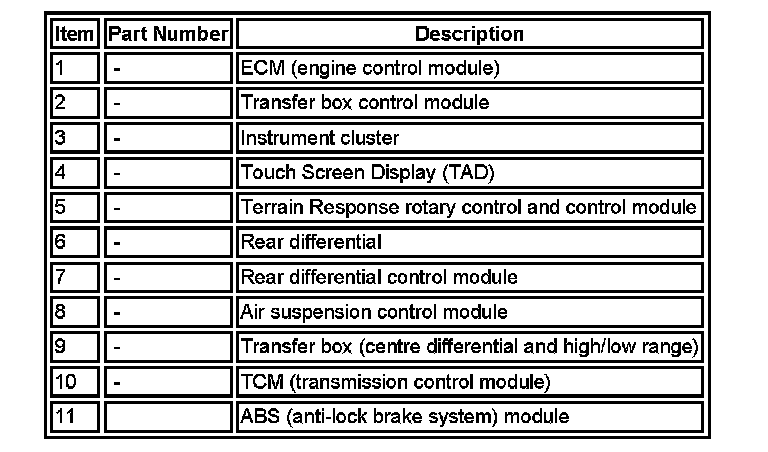

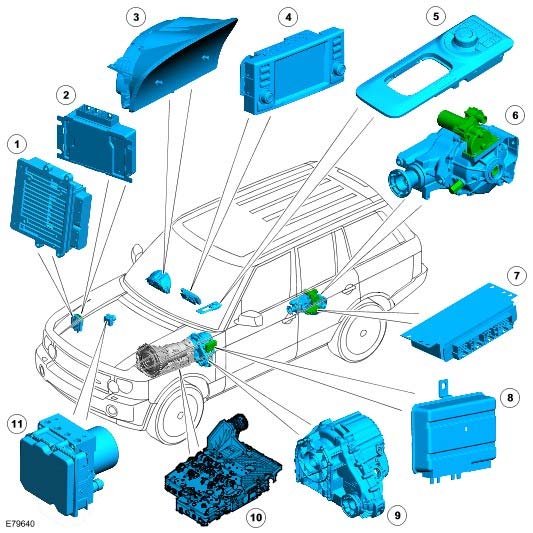

Terrain Response - Component Location (Part 1):
Terrain Response - Component Location (Part 2):
