Communications Control Module: Service and Repair



Portable Support Electronics (PSE) Module

Removal
1. Disconnect the battery ground cable.
2. Remove the access panel from the loadspace trim panel LH.

CAUTION: Cover fiber optic cable connectors to minimize dust ingress and avoid bending the cables in a radius of less than 30 mm.

3. Disconnect the portable support electronics (PSE) module optical connector.





4. Disconnect the PSE module electrical connector.

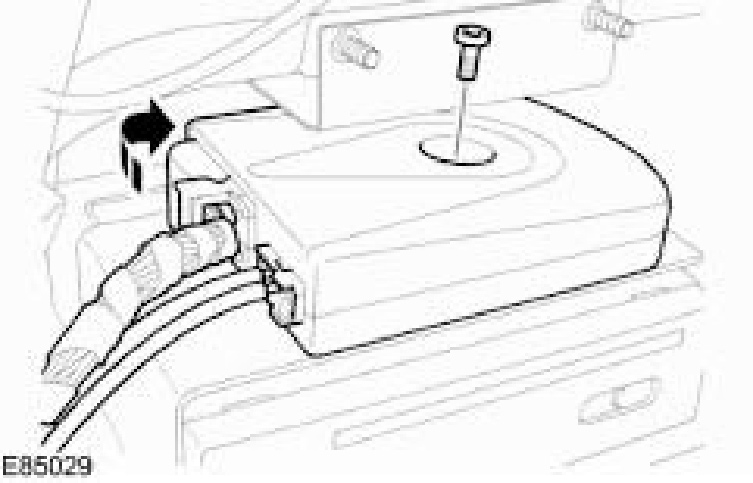

5. Remove the PSE module.
^ Remove the bolt.

Installation
1. Install the PSE module.
^ Tightenthebolt to 4 Nm (3ft. lbs.).
2. Connect the PSE module electrical connector.
3. Connect the PSE module optical connector.
4. Install the access panel to the loadspace trim panel LH.
5. Connect the battery ground cable.
6. Using the Land Rover approved diagnostic equipment, follow the on-screen instructions and configure the PSE module.
