Navigation System Digital Versatile Disc (DVD) Unit



Navigation System Digital Versatile Disc (DVD) Unit

Removal

CAUTION: After switching off the ignition, wait for 2 minutes before disconnecting the battery. Failure to wait for 2 minutes will damage the navigation computer.

1. Disconnect the battery ground cable.
2. Remove the access panel from the loadspace trim panel LH.

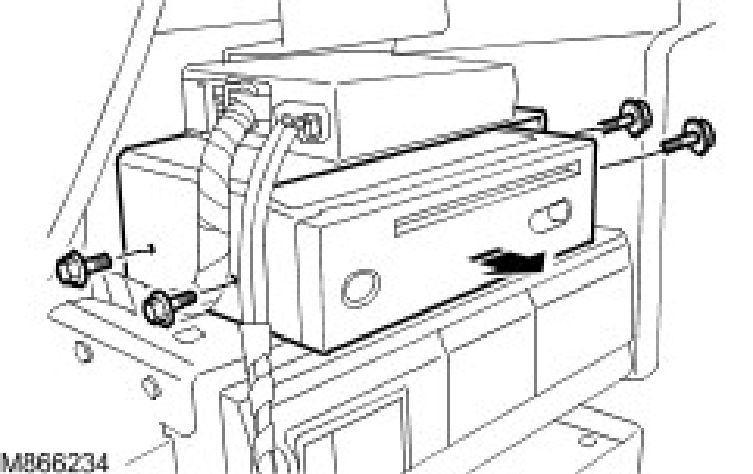

3. Release the navigation system digital versatile disc (DVD) unit.

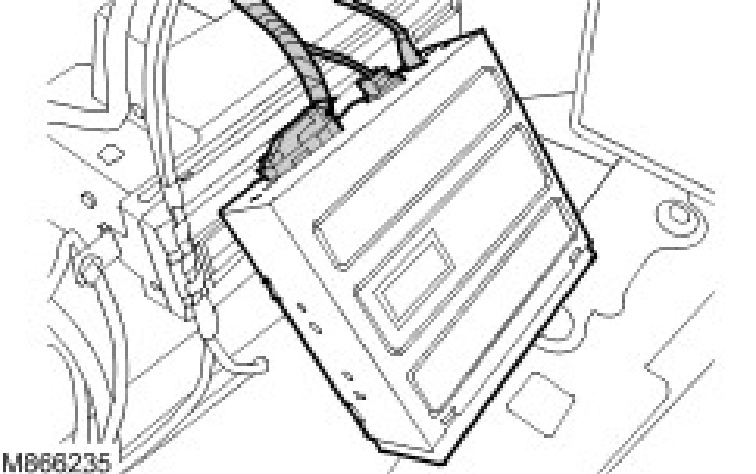

4. Remove the navigation DVD unit.
^ Disconnect the coaxial cableconnector.
^ Disconnect the 2 electrical connectors.





Installation
1. Install the navigation DVD unit.
^ Connect the coaxial cable connector.
^ Connect the electrical connectors.
2. Secure the navigation DVD unit.
^ Tighten the bolts to 4 Nm (3 ft. lbs.).
3. Install the access panel to the loadspace trim panel LH.
4. Connect the battery ground cable.
5. Using the Land Rover approved diagnostic equipment, follow the on-screen instructions and configure the navigation DVD unit.
