Front Bumper: Service and Repair

Front Bumper

Service Repair No - 76.22.49

Removal

1. Remove the radiator grille support.
2. Release the washer jet hose.
^ Remove the 4 clips.







3. Release the horn assembly.
^ Remove the bolt.
^ Tie aside.







4. Remove the radiator lower air deflector.
^ Remove the 4 clips.

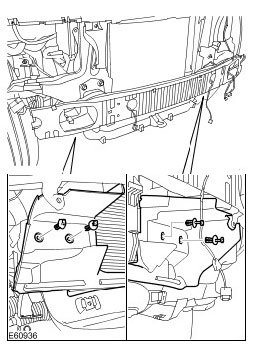

5. Remove the front bumper.
^ Release the wiring harness.
^ Remove and discard the 8 nuts.







Installation

1. Install the front bumper.
^ Attach the wiring harness.
^ Tighten the new nuts to 45 Nm (33 ft. lbs.).

2. Install the radiator lower air deflector.
^ Secure with the clips.

3. Install the horn assembly.
^ Tighten the bolt to 10 Nm (7 ft. lbs.).

4. Attach the washer jet hose.
^ Secure with the clips.

5. Install the radiator grille support.
