Radiator Grille Support

Radiator Grille Support

Service Repair No - 76.10.12

Removal

1. Remove the front bumper cover.
2. Remove both headlamps.
3. Remove the 2 foam pads.







4. Release the ambient air temperature sensor.







5. Release the air deflector from the radiator grille support.
^ Remove the clip.
^ Repeat the above procedure for the other side.

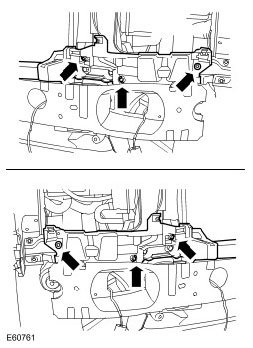

6. Remove the radiator grille support.
^ Remove and discard the 6 nuts.







Installation

1. Install the radiator grille support.
^ Tighten the new nuts to 10 Nm (7 ft. lbs.).

2. Secure the air deflectors.
^ Install the clips.

3. Secure the ambient air temperature sensor.
4. Install the 2 foam pads.
5. Install the headlamps.
6. Install the front bumper cover.
