Home >> Land Rover >> 2007 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Motor >> Motor-Seat-Forward-Rearward-LH

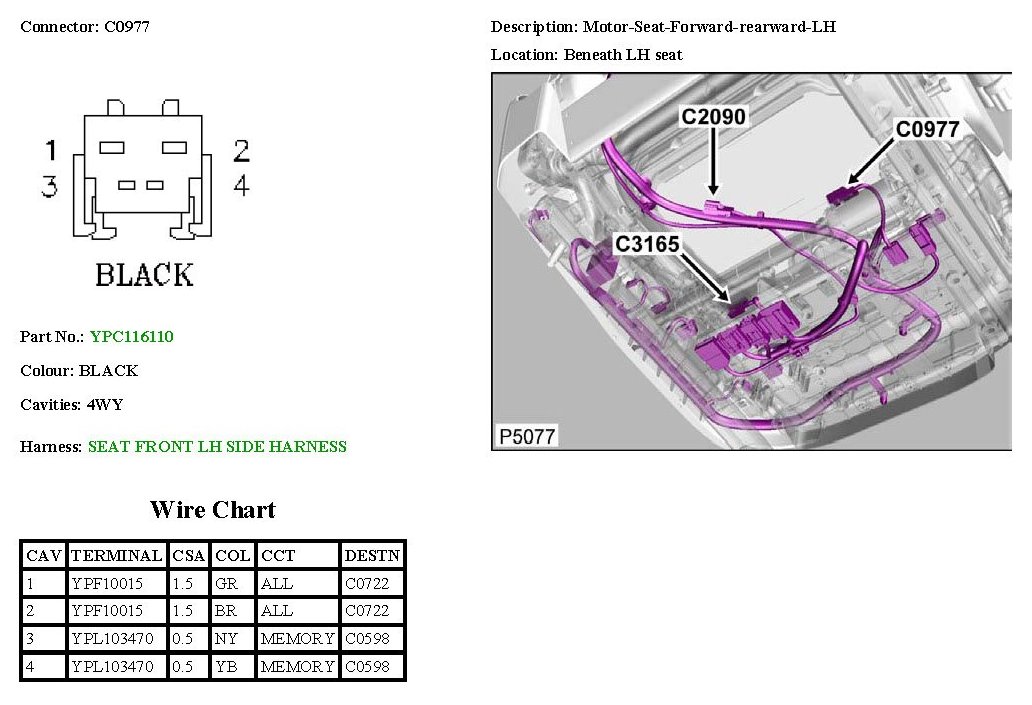

Motor-Seat-Forward-Rearward-LH

C0977:
