Ambient Temperature Sensor / Switch HVAC: Service and Repair
Ambient Air Temperature Sensor
Service Repair No - 80.40.31Removal 1.
Remove the radiator grille.
2.

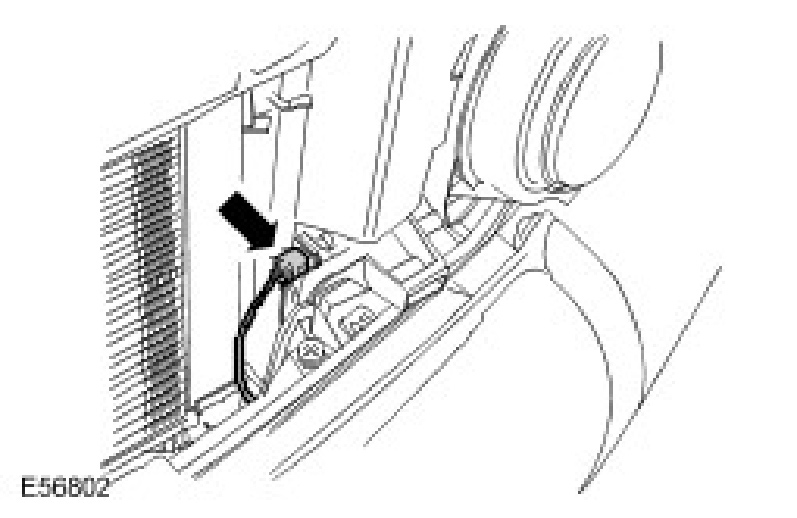

Remove the ambient air temperature sensor.
^
Disconnect the electrical connector.
Installation 1.
To install, reverse the removal procedure.
