Headlamp Alignment Control Module: Service and Repair



Adaptive Front Lighting Module

Service Repair No - 86.54.06

Removal
1. LH side: Remove the cowl side trim panel.

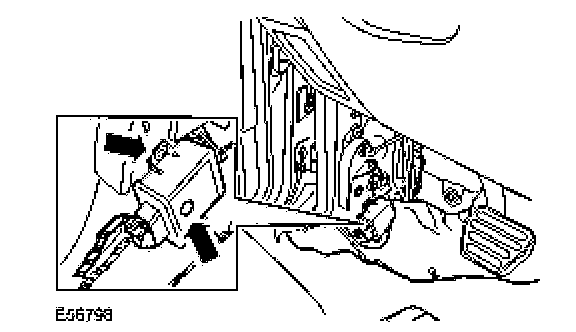

2. Remove the adaptive front lighting module.
^ Lift the carpet for access.
^ Disconnect the electrical connector.
^ Remove the 2 clips.







Installation
1. Install the adaptive front lighting module.
^ Secure with the clips.
^ Connect the electrical connector.
^ Position the carpet.
2. LH side: Install the cowl side trim panel.
