Air Cleaner Housing: Service and Repair



Air Cleaner

Service Repair No - 19.10.01

Removal
1. Disconnect the battery ground cable.

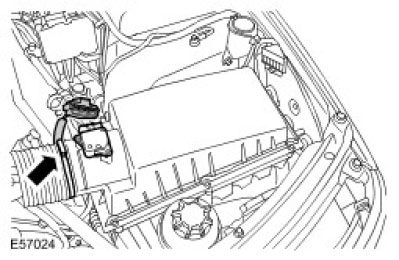

2. Disconnect the air intake resonator.
^ Release the clip.

3. Disconnect the mass air flow (MAF) sensor electrical connector.

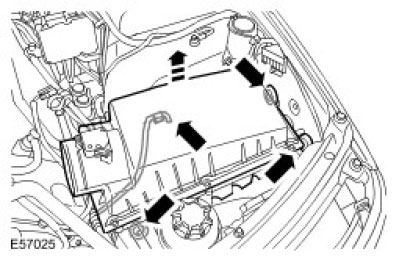

4. Remove the air cleaner assembly.
^ Release the breather hose.
^ Release from the 3 grommets.





Installation
1. To install, reverse the removal procedure.

NOTE: When installing the air cleaner, make sure the locating pegs fit securely into the grommets.
