Tire Pressure Module: Service and Repair

Tire Pressure Monitoring System Module

Service Repair No - 86.54.05

Removal

1. Remove the access panel from the loadspace RH trim panel.

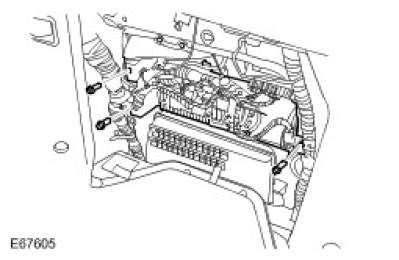

2. Release the auxiliary junction box mounting bracket.
^ Remove the 3 bolts.

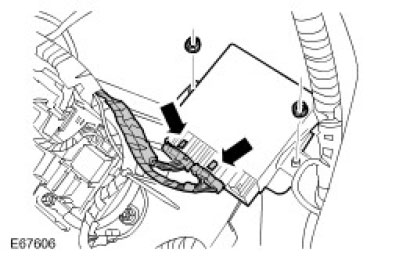

3. Remove the tire pressure monitoring module.
^ Disconnect the 2 electrical connectors.
^ Remove the 2 nuts.





Installation

1. Install the tire pressure monitoring module.
^ Tighten the nuts.
^ Connect the electrical connectors.

2. Secure the auxiliary junction box mounting bracket.
^ Tighten the bolts to 6 Nm (4 ft. lbs.).

3. Install the access panel.
4. Using WDS, initiate a new control module.
