Passenger Compartment Fuse Box

The passenger compartment fuse box is fitted behind the lower glove box; to access the fuses, open the glove box, then release the left-hand support stay as shown. This allows the glove box to open to the service position.

Remove the fuse box cover by pressing down on the catches (1) while pulling the cover rearwards. The solid arrow in the illustration indicates the location of the fuse removal tool.

Note: There are a number of spare fuses included within the fuse box (see fuse box label).

A label in the fuse box cover shows the circuits protected, the fuse values and their locations.

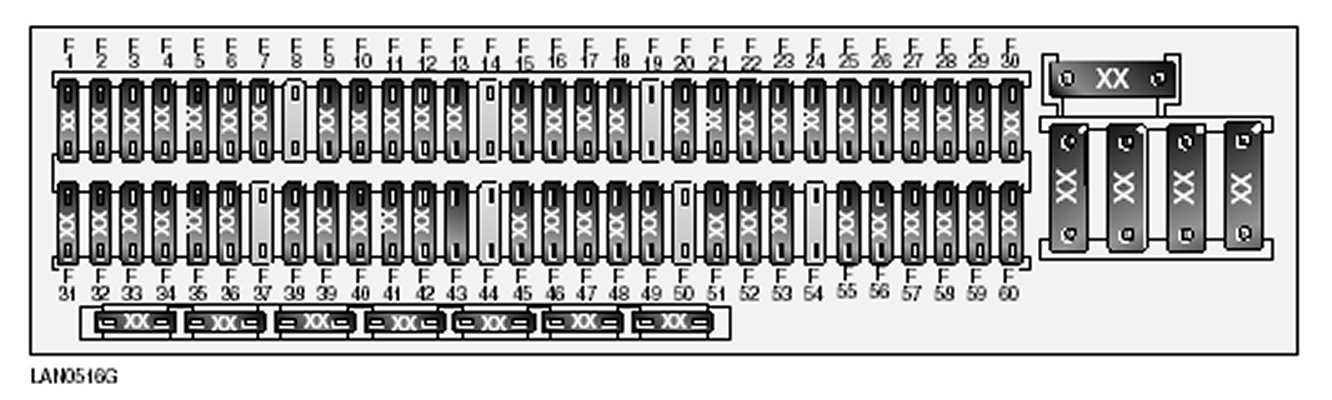

Passenger Compartment Fuse Box Layout:

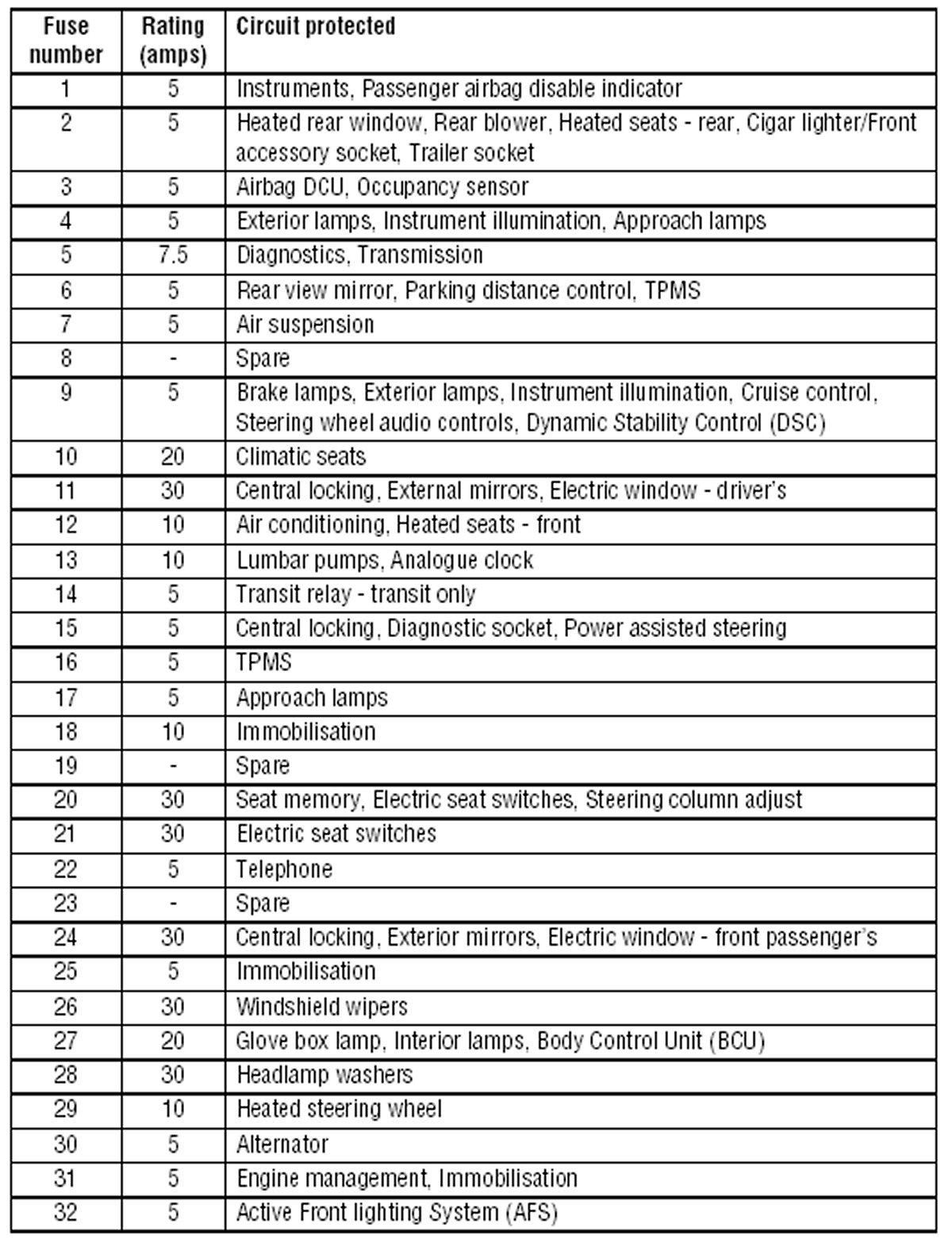

Fuses 1 - 32 Specifications:

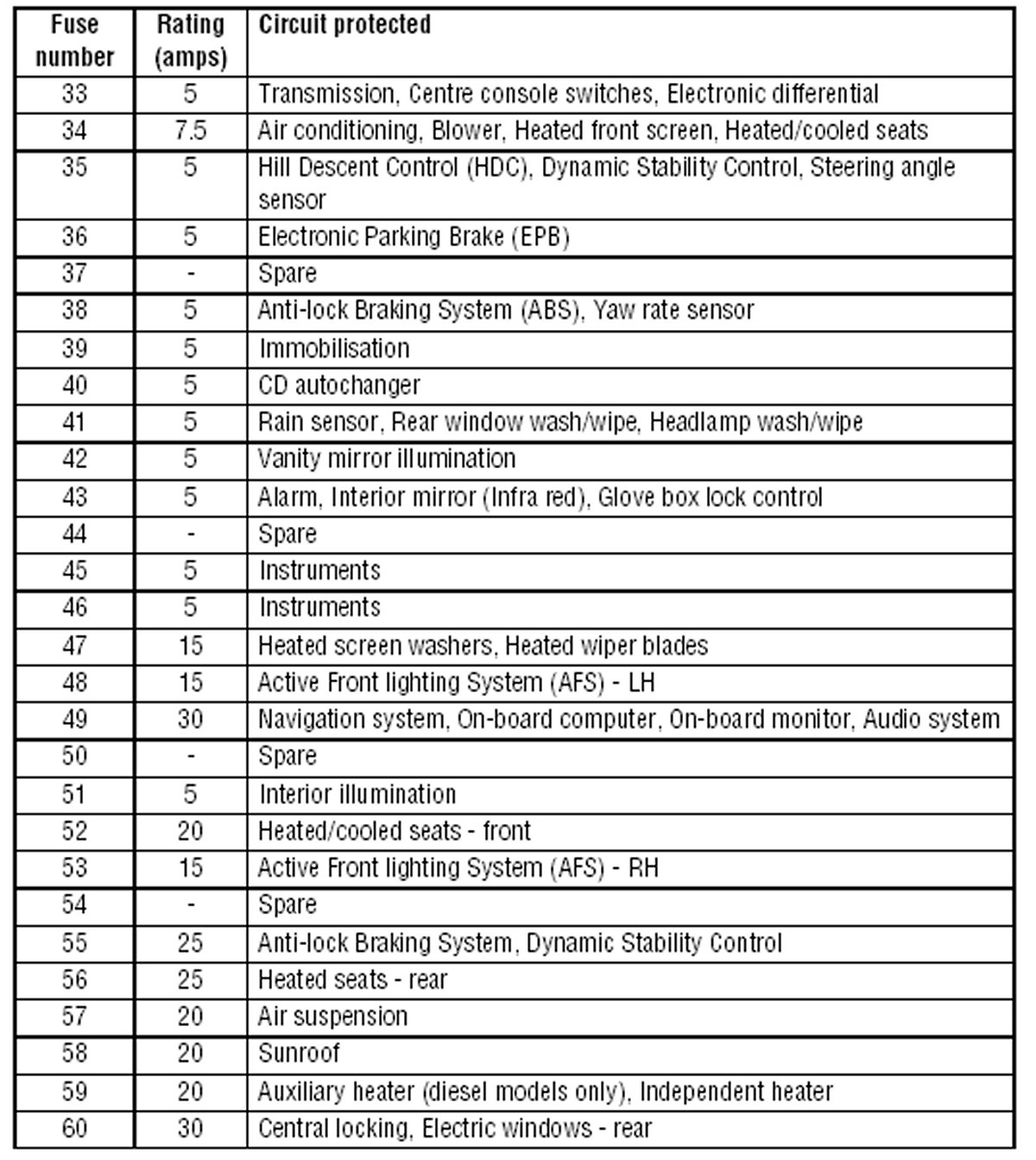

Fuses 33 - 60 Specifications:
