Antenna Control Module: Service and Repair



Antenna Module

Removal

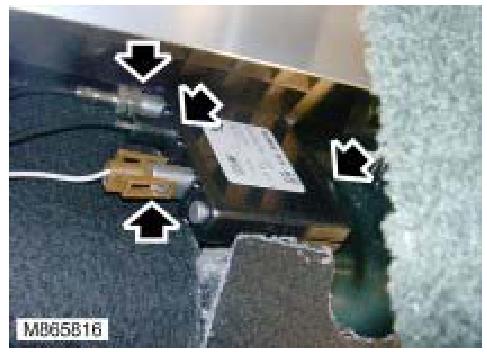

1. Remove the access panel from the loadspace trim panel LH.
2. Disconnect the antenna module coaxial cable connector.





3. Disconnect the antenna module electrical connector.
4. Disconnect the coaxial cable connector.
^ Release the nut.
5. Remove the antenna module.
^ Remove the bolt.

Installation
1. Install the antenna module.
^ Tighten the bolt to 6 Nm (4 ft. lbs.).
2. Connect the antenna module coaxial cable connector.
^ Tighten the nut.
3. Connect the antenna module coaxial cable connector.
4. Connect the antenna module electrical connector.
5. Install the access panel to the loadspace trim panel LH.
