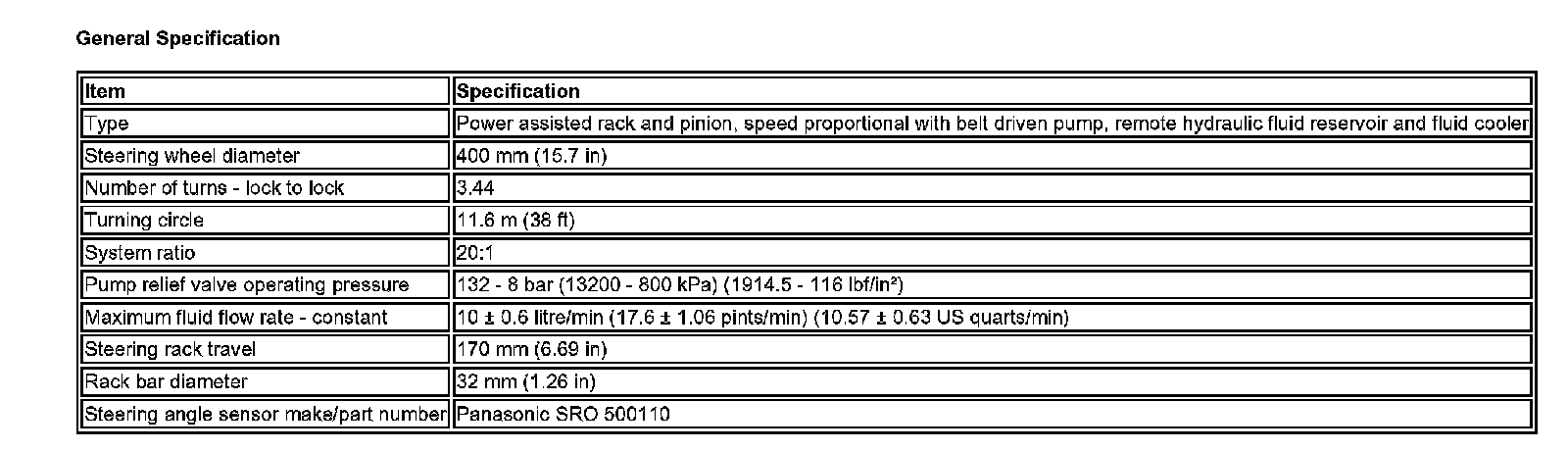

General Specifications

General Specifications





Type:
Power assisted rack and pinion, speed proportional with belt driven pump, remote hydraulic fluid reservoir and fluid cooler.
Steering Wheel Diameter 400mm (15.7 in.)
Turning Circle 11.6 meters (38 ft.)
System Ratio 17.8:1
System Operating Pressure - Maximum 120 bar (12000 kPa/1740 psi)
Pump Relief Valve Operating Pressure 114 ±4 bar (11400 ± 400 kPa/1653 ± 58 psi)
Maximum Fluid Flow Rate - Constant 8.8 ±0.5 liter/min (15.4 ±0.8 pints/ min.
