Alternator: Service and Repair



Generator

Service Repair No - 86.10.02

Removal
1. Disconnect the battery ground cable.
2. Raise and support the vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

3. Remove the accessory drive belt.
4. Disconnect the battery positive cable.
^ Release the cover.
^ Remove the nut.

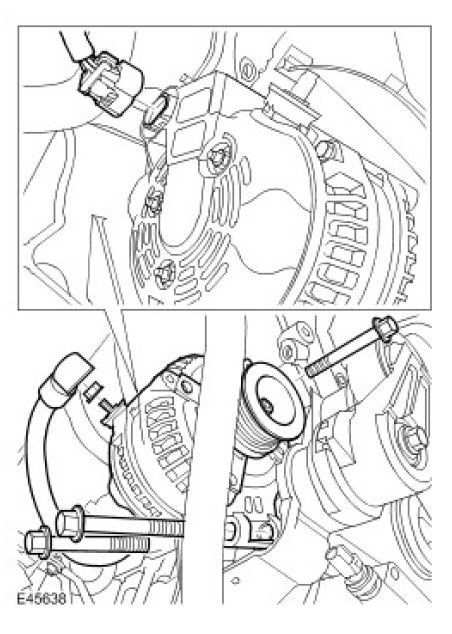

5. Remove the generator.
^ Remove the 3 bolts.
^ Disconnect the electrical connector.





Installation
1. Install the generator.
^ Tighten the 3 bolts to 48 Nm (35 ft. lbs.).
^ Connect the electrical connector.

2. Connect the battery positive cable.
^ Tighten the nut to 10 Nm (7 ft. lbs.).
^ Secure the cover.

3. Install the accessory drive belt.
4. Connect the battery ground cable.
