Washer Fluid Level Switch: Service and Repair

Low Washer Fluid Warning Indicator Switch

Removal
1. Turn the steering on to full lock for access.
2. Raise the vehicle on a lift.

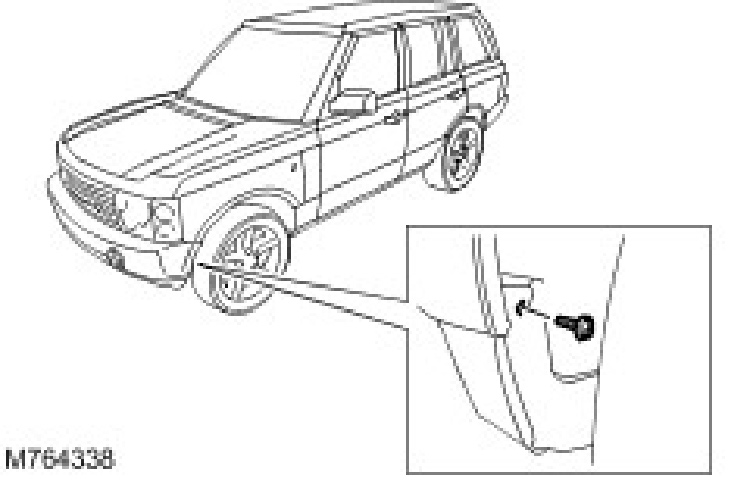

3. Remove the front bumper extension panel screw.

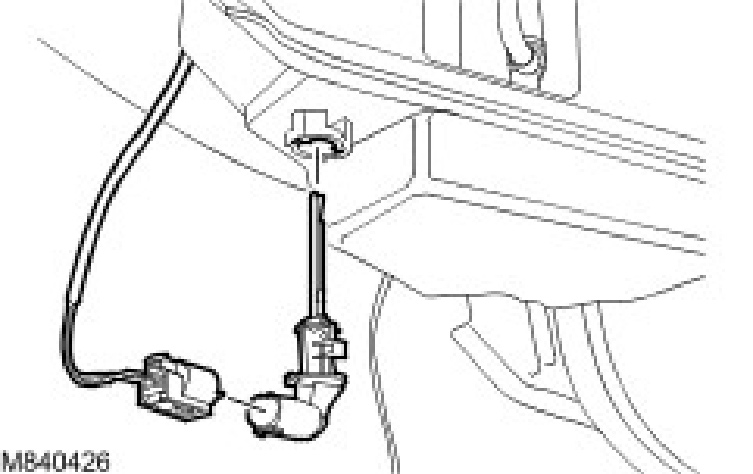

4. Remove the low washer fluid warning indicator switch.
^ Release the front lower edge of the fender splash shield for access.
^ Disconnect the electrical connector.





Installation
1. Install the low washer fluid warning indicator switch.
^ Connect the low washer fluid warning indicator switch electrical connector.
2. Install the front bumper extension panel screw.
3. Lower the vehicle on the lift.
^ Turn the steering wheel to the straight ahead position.
